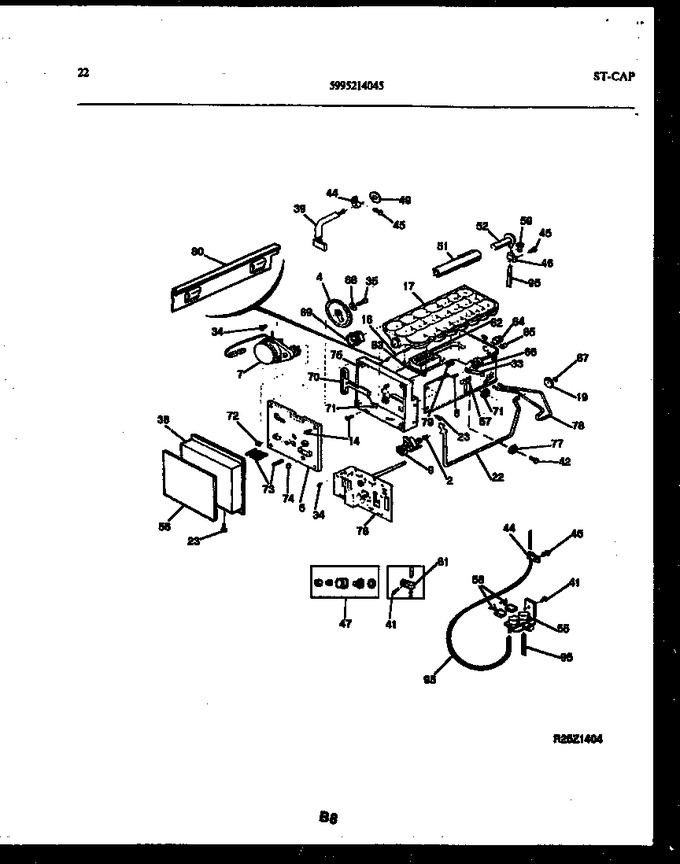

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303001139 | Spring-sensing Arm |
|
- | |||||
| 4 | 5301124984 | Gear-crank |
|
- | |||||
| 5 | 5301124981 | Plate-motor Mtg |
|
- | |||||
| 6 | 5301121694 | Screw-spring Mtg |
|
- | |||||
| 7 | 5301124982 | Motor-ice Maker |
|
- | |||||
| 9 | 5301124983 | Cam-ice Level |
|
- | |||||
| 14 | 5308010350 | Screw-6-32 X 1/2 (5) |
|
- | |||||
| 16 | 5301138166 | Frame-ice Maker |
|
- | |||||
| 17 | 5302832432 | Tray-ice W/ Insul & Retnr |
|
$ 71.72 | |||||
| 19 | 5301123459 | Bearing-arm |
|
- | |||||
| 22 | 5301124988 | Arm-sensing |
|
- | |||||
| 23 | 5303001020 | Screw, Cr Flat Head, 8-32(d) X 1/2 |
|
- | |||||
| 33 | 5301121700 | Spring-tray Restrainer |
|
- | |||||
| 34 | 5301124507 | Screw-4-40 X 7/32 (5) |
|
- | |||||
| 35 | 5303001119 | Shaft-crank Gear |
|
- | |||||
| 36 | 3017845 | Cover/front-im |
|
- | |||||
| 39 | 5303001245 | Wiring Harness, I&w-im |
|
- | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 42 | 5308012819 | Screw-im Mtg, Slot Hex Wa Hd, 8-15(a) X 1-1/4 |
|
- | |||||
| 44 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 46 | 5303001193 | Clamp-inlet Tube, Metal |
|
$ 16.30 | |||||
| 47 | 3206360 | Adapter-water Supply |
|
$ 94.66 | |||||
| 49 | 5303001147 | Plug-harness Hole, (2) |
|
$ 22.30 | |||||
| 51 | 5308015765 | Tube-filler Extension |
|
- | |||||
| 52 | 5308010269 | Tube-water Inlet |
|
- | |||||
| 55 | 5308017599 | Valve-solenoid/water, Dual |
|
$ 67.90 | |||||
| 56 | 5303276709 | Label-ice Maker |
|
- | |||||
| 57 | 5308012818 | Guide-i.m. Screw |
|
- | |||||
| 58 | 5308017050 | Wiring Harness, I&w, Lower |
|
- | |||||
| 59 | 5303001191 | Sleeve-tube Insert |
|
$ 6.72 | |||||
| 55A | 5303015102 | Cap-water Valve (non-illustrated) |
|
- |
