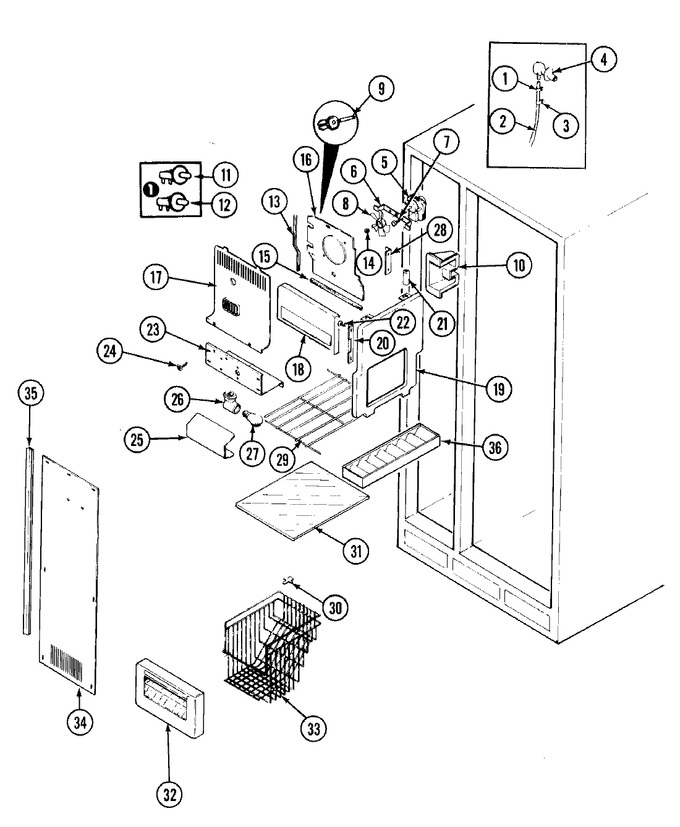

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) |
|
$ 9.95 | |||||
| 2 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-2) |
|
$ 11.19 | |||||
| 3 | 65517-1 | Clip |
|
- | |||||
| 4 | 69219-1 | Grommet |
|
- | |||||
| 4 | 69593-1 | Wire Harness, Frz. Adapter |
|
- | |||||
| 5 | WP61004888 | Motor, Fan Evaporator (Replaces: 69298-1) |
|
Immediately | $ 104.99 | ||||
| 6 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 7 | WP488729 | Screw (Replaces: 9986-45) |
|
Immediately | $ 7.01 | ||||
| 8 | 52120-4 | Blade, Evaporator Fan |
|
- | |||||
| 9 | 22715-6 | Rivet |
|
- | |||||
| 10 | 53837-1 | Shield |
|
- | |||||
| 11 | 68058-1 | Switch, Interlock |
|
- | |||||
| 12 | W11384469 | Switch, Light (Replaces: 66987-1) |
|
Immediately | $ 33.51 | ||||
| 13 | 66325-21 | Seal (44``) |
|
- | |||||
| 14 | 420092-900 | Washer, Spring |
|
- | |||||
| 15 | 68946-6 | Seal |
|
- | |||||
| 16 | 67297-6 | Cover, Coil Upper |
|
- | |||||
| 17 | 66325-23 | Seal |
|
- | |||||
| 17 | 67225-3 | Shield, Fan |
|
- | |||||
| 18 | 69869-2 | Panel, Access |
|
- | |||||
| 18 | 60313-1 | Cup, Shelf |
|
- | |||||
| 19 | 68654-1 | Divider |
|
- | |||||
| 20 | 68572-1 | Latch |
|
- | |||||
| 21 | 68823-1 | Spacer, Divider |
|
- | |||||
| 22 | W11233072 | Screw (Replaces: 400016-1) |
|
Immediately | $ 12.62 | ||||
| 23 | 68551-1 | Bracket, Motor |
|
- | |||||
| 24 | 400015-12 | Screw |
|
- | |||||
| 25 | 67292-1 | Shield, Light |
|
- | |||||
| 25 | 67345-3 | Support, Light Shield |
|
- | |||||
| 26 | 29814-2 | Receptacle, Light |
|
- | |||||
| 27 | W11679940 | Bulb, Light (Replaces: 31956-1) |
|
Immediately | $ 10.17 | ||||
| 28 | 67288-1 | Bracket, Mounting |
|
- | |||||
| 28 | W11233072 | Screw (Replaces: 400026-12) |
|
Immediately | $ 12.62 | ||||
| 28 | 26527-11 | Tube, Drain |
|
- | |||||
| 28 | 52526-1 | Grommet |
|
- | |||||
| 29 | 67466-1 | Cup, Shelf |
|
- | |||||
| 29 | 68630-6 | Shelf, Dispenser |
|
- | |||||
| 30 | 67488-1 | Clip, Basket Stop |
|
- | |||||
| 31 | 68139-25 | Shelf |
|
- | |||||
| 32 | 69662-1 | Front, Basket |
|
- | |||||
| 33 | 69661-2 | Basket, Frz. Wire |
|
- | |||||
| 34 | 67335-3 | Cover, Coil Lower |
|
- | |||||
| 34 | 400015-12 | Screw |
|
- | |||||
| 35 | 69314-1 | Seal Cover (side) |
|
- | |||||
| 35 | W11772394 | Screw (Replaces: 400021-1) |
|
Immediately | $ 10.94 | ||||
| 36 | 68629-1 | Divider Shelf |
|
- |
