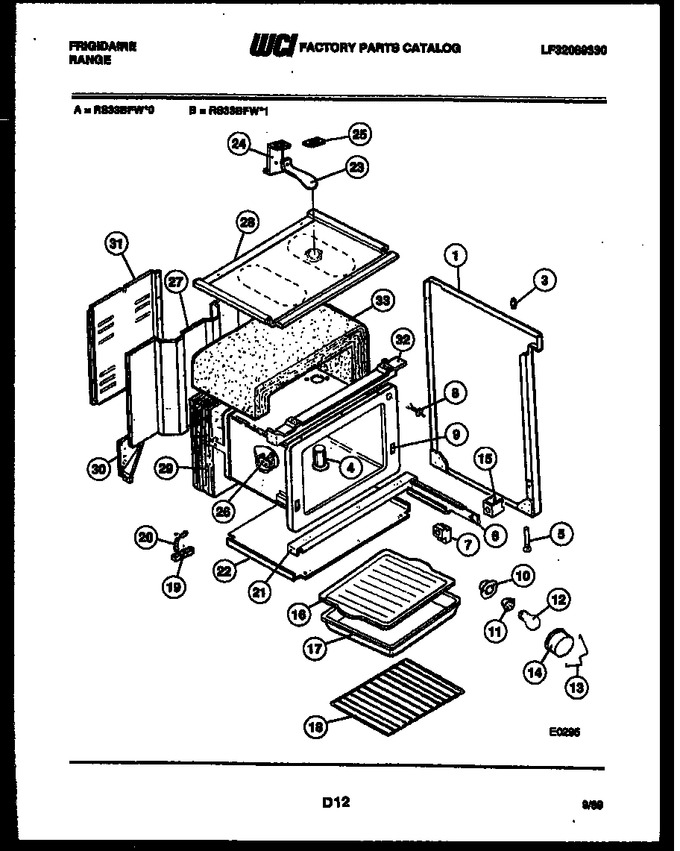

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08012529		Side Pnl - Rh (almd)		Appelez-nous	-
3	08003107		Bumper - Cooktop (4)		Appelez-nous	-
4	08016479		Vent Tube		Appelez-nous	-
5	08003583		Screw-leveling		Appelez-nous	-
6	08015746		Rail - Drawer Rh		Appelez-nous	-
7	08003103		Guide - Drawer Front		Appelez-nous	-
8	08015948		Switch - Oven Light		Appelez-nous	-
9	08012237		Oven Liner		Appelez-nous	-
10	3051511		Cup, Oven Light				$ 60.22
11	08011085		Receptacle - Light		Appelez-nous	-
12	3013071		Light Bulb		Appelez-nous	-
13	08011087		Retainer - Lens		Appelez-nous	-
14	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 15.61
15	08011055		Spacer - Drwr Rail		Appelez-nous	-
16	3203164		Grille - Broiler		Appelez-nous	-
17	08005315		Pan, Broiler		Appelez-nous	-
18	3131973		Rack - Oven Regular		Appelez-nous	-
19	3051098		Terminal-block		Appelez-nous	-
20	08003146		Strap - Ground		Appelez-nous	-
21	3200927		Channel - Oven Support Lower		Appelez-nous	-
22	3017394		Panel - Bottom		Appelez-nous	-
23	08014259		Tube - Oven Vent		Appelez-nous	-
25	3051666		Gskt - Oven Vent Tube		Appelez-nous	-
26	3051552		Bracket - Thermo Bulb		Appelez-nous	-
27	3017575		Back - Range		Appelez-nous	-
28	08014247		Panel - Subtop		Appelez-nous	-
29	3051522		Insulation - Oven Back		Appelez-nous	-
30	3017481		Gusset-rear, Rh		Appelez-nous	-
31	3051856		Wire Cover		Appelez-nous	-
32	3203209		Channel - Oven Support Upper		Appelez-nous	-
33	3051521		Insulation Wrap		Appelez-nous	-
1A	08012530		Side Pnl - Lh (almd)		Appelez-nous	-
30A	3017482		Gusset-rear, Lh		Appelez-nous	-
6A	3051652		Rail, Drawer Lh		Appelez-nous	-
