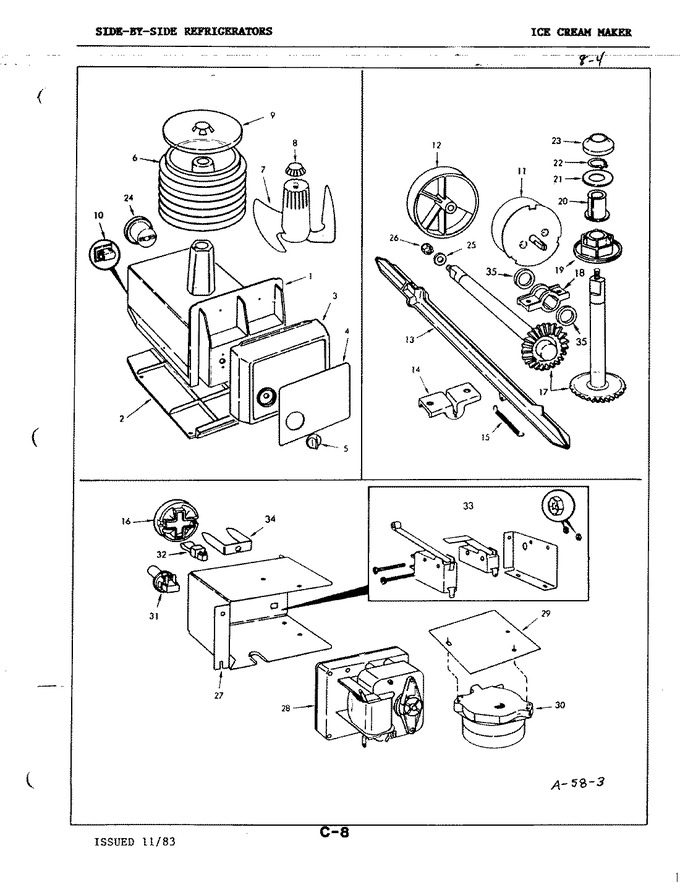

05 - Ice Cream Maker
06 - Unit Compartment & System
07 - Water & Ice Dispenser
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 65124-2 | Base |
|
- | |||||
| 2 | 402017-001 | Screw |
|
- | |||||
| 2 | 65124-1 | Base |
|
- | |||||
| 3 | 65126-1 | Base Front |
|
- | |||||
| 3 | 400001-1 | Screw |
|
- | |||||
| 4 | 65282-2 | Insert |
|
- | |||||
| 5 | 61937-1 | Retainer |
|
- | |||||
| 5 | 65128-2 | Timer Knob |
|
- | |||||
| 6 | 65122-1 | Cannister |
|
- | |||||
| 7 | 65127-1 | Stirrer |
|
- | |||||
| 8 | 65144-1 | Stirrer Knob |
|
- | |||||
| 9 | 65115-1 | Cannister Lid |
|
- | |||||
| 10 | 65184-2 | Latch |
|
- | |||||
| 11 | 65288-1 | Timer |
|
- | |||||
| 11 | 406036-1 | Screw |
|
- | |||||
| 12 | 65104-1 | Timer Cam |
|
- | |||||
| 13 | 65108-1 | Plunger |
|
- | |||||
| 14 | 400015-1 | Screw |
|
- | |||||
| 14 | 65116-1 | Bracket |
|
- | |||||
| 15 | 65142-1 | Spring |
|
- | |||||
| 16 | 65176-1 | Bushing, Plunger Guide |
|
- | |||||
| 17 | 65102-1 | Gear Shaft |
|
- | |||||
| 18 | 400015-1 | Screw |
|
- | |||||
| 18 | 65109-1 | Bearing Horizontal |
|
- | |||||
| 19 | 65107-1 | Bearing, Lower Vertical |
|
- | |||||
| 20 | 65113-1 | Bearing, Upper Vertical |
|
- | |||||
| 21 | 420097-103 | Washer |
|
- | |||||
| 22 | WP9703438 | Retainer (Replaces: 65100-1) |
|
Immediately | $ 3.81 | ||||
| 23 | 65233-1 | Seal |
|
- | |||||
| 24 | 65171-1 | Drive Ring |
|
- | |||||
| 25 | 420066-103 | Washer |
|
- | |||||
| 26 | 430087-103 | Locknut |
|
- | |||||
| 27 | 65265-1 | Box,auger Motor |
|
- | |||||
| 28 | WP488234 | Screw (Replaces: 406026-103) |
|
$ 6.07 | |||||
| 28 | 12001773 | Motor, Auger (Replaces: 65186-1) |
|
$ 312.61 | |||||
| 29 | 65143-1 | Insulation, Motor Control |
|
- | |||||
| 30 | 405072-1 | Screw |
|
- | |||||
| 30 | 65132-1 | Control, Auger Motor |
|
- | |||||
| 31 | ES18809 | Switch, Auger Shut Off (Replaces: 65177-1) |
|
$ 11.30 | |||||
| 32 | 65185-1 | Strike, Auger Box |
|
- | |||||
| 33 | 405022-1 | Screw |
|
- | |||||
| 33 | 65138-1 | Wire Harness |
|
- | |||||
| 33 | RA43976-1 | Icm Switch Asm |
|
- | |||||
| 34 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052-1) |
|
Immediately | $ 62.02 | ||||
| 35 | 54233-3 | Spacer |
|
- |
