SELECT A DIAGRAM

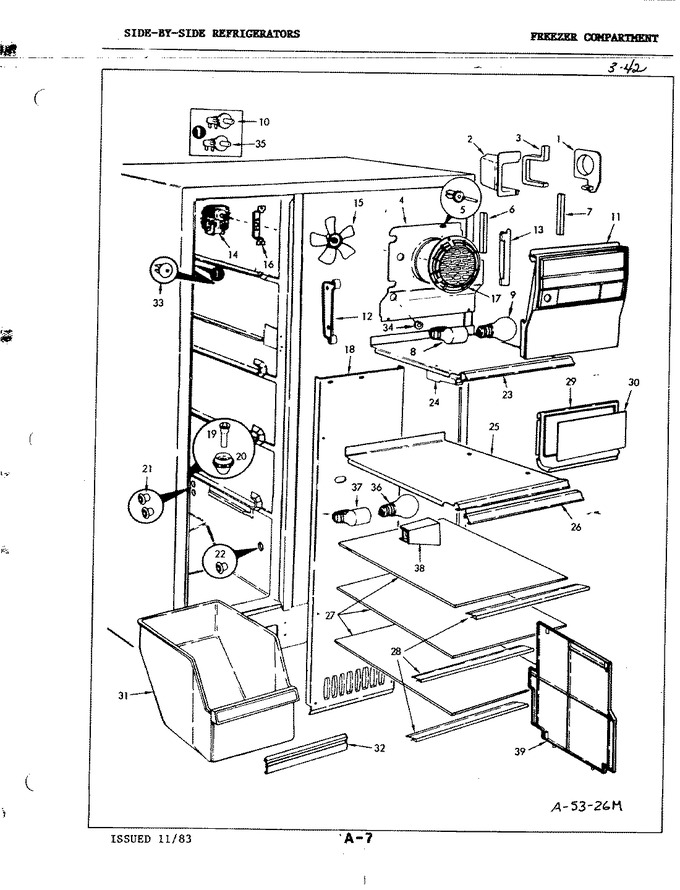

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice Cream Maker


06 - Unit Compartment & System


07 - Water & Ice Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	54423-1		Orifice		Appelez-nous	-
2	53837-1		Shield		Appelez-nous	-
3	52077-10		Seal		Appelez-nous	-
4	400015-1		Screw		Appelez-nous	-
4	62690-36		Cover, Coil		Appelez-nous	-
5	59920-1		Stud, Mounting Coil Cover		Appelez-nous	-
6	52077-19		Seal,upper Coil Cover To Liner		Appelez-nous	-
7	52824-6		Coil Seal		Appelez-nous	-
8	29814-2		Receptacle, Light		Appelez-nous	-
9	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
10	56432-2		Switch		Appelez-nous	-
11	55664-34		Shield		Appelez-nous	-
12	53687-2		Support		Appelez-nous	-
13	54424-2		Support		Appelez-nous	-
14	56488-3		Motor, Fan Freezer		Appelez-nous	-
15	52120-1		Blade, Fan Frzr.		Appelez-nous	-
16	64856-2		Bracket, Fan Motor		Appelez-nous	-
17	WP67006908		Screw   (Replaces: 400022-1)			Immediately	$ 7.16
17	62689-1		Fan Grid		Appelez-nous	-
18	65224-10		Cover, Coil		Appelez-nous	-
19	26527-5		Drain Tube		Appelez-nous	-
20	52526-1		Grommet		Appelez-nous	-
21	53727-1		Retainer, Air Tunnel		Appelez-nous	-
22	53727-1		Retainer, Air Tunnel		Appelez-nous	-
23	21697-14		Stud		Appelez-nous	-
23	53743-35		Frzr Shelf		Appelez-nous	-
24	63079-3		Glide		Appelez-nous	-
24	53914-2		Stud		Appelez-nous	-
24	WP210720		Rivet   (Replaces: 26397-9)				$ 12.14
25	53743-37		Frzr Shelf		Appelez-nous	-
26	53752-33		Trim		Appelez-nous	-
27	62438-32		Shelf, Glass		Appelez-nous	-
28	59746-25		Trim		Appelez-nous	-
29	65066-2		Door		Appelez-nous	-
30	65281-15		Insert		Appelez-nous	-
31	59330-12		Drawer		Appelez-nous	-
32	59317-98		Handle		Appelez-nous	-
33	53821-1		Nut		Appelez-nous	-
34	59090-1		Bushing		Appelez-nous	-
35	57418-1		Clip,food Liner Mount.(slides)		Appelez-nous	-
35	ES18809		Switch   (Replaces: 56432-1)				$ 11.30
36	W11679940		Light Bulb (25w,125v)   (Replaces: 2386-1)			Immediately	$ 10.17
37	29814-2		Receptacle, Light		Appelez-nous	-
38	52197-1		Guard		Appelez-nous	-
39	63010-1		Divider		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
