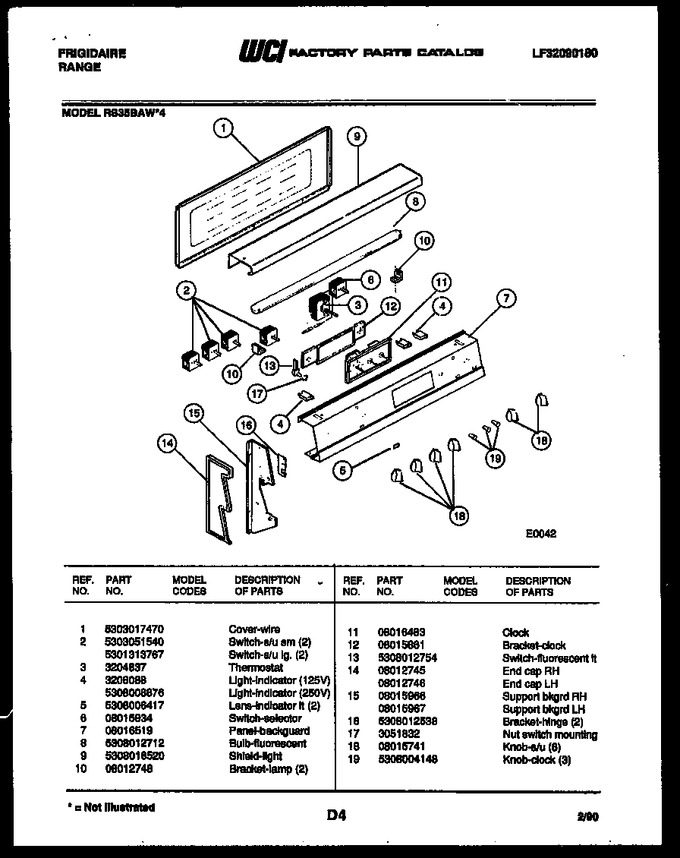

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 3 | 3204837 | Thermostat |
|
- | |||||
| 4 | 3206088 | Light-indicator (125 V) |
|
- | |||||
| 5 | 5308006417 | Lens-indicator Lt (2) |
|
$ 19.06 | |||||
| 6 | 08015934 | Switch, Selector |
|
- | |||||
| 7 | 08016519 | Panel - Backguard |
|
- | |||||
| 8 | 5308012712 | Bulb-fluorescent |
|
- | |||||
| 9 | 5308016520 | Shield-light |
|
- | |||||
| 10 | 08012748 | Bracket, Lamp (2) |
|
- | |||||
| 11 | 08016483 | Clock |
|
- | |||||
| 12 | 08015861 | Bracket, Clock |
|
- | |||||
| 13 | 5308012754 | Switch-fluorescent Lt |
|
- | |||||
| 14 | 08012745 | End Cap, Rh |
|
- | |||||
| 15 | 08015966 | Support Bkgrd Rh |
|
- | |||||
| 16 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 17 | 3051832 | Nut Switch Mounting |
|
- | |||||
| 18 | 08015741 | Knob - S/u (6) |
|
- | |||||
| 19 | 5308004148 | Knob-clock (3) |
|
- | |||||
| 14A | 08012746 | End Cap, Lh |
|
- | |||||
| 15A | 08015967 | Support - Bkgrd Lh |
|
- | |||||
| 2A | 5301313767 | Switch-s/u Lg. (2) |
|
- | |||||
| 4A | 5308008876 | Light-indicator (250 V) |
|
- |
