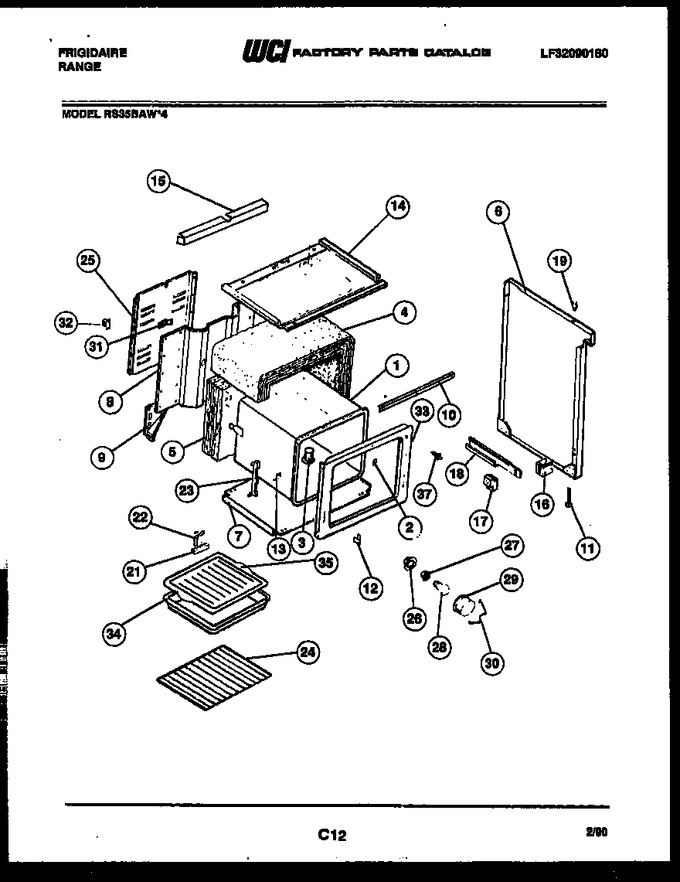

02 - Body Parts
03 - Cooktop Parts
04 - Broiler Parts
05 - Door Parts
06 - Drawer Parts
07 - Backguard
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206079 | Body-oven |
|
- | |||||
| 2 | 3202082 | Cover Seam |
|
- | |||||
| 3 | 08012541 | Tube-oven Vent |
|
- | |||||
| 4 | 3051521 | Insulation - Oven Wrap |
|
- | |||||
| 5 | 5303051630 | Insulation, Oven Back |
|
- | |||||
| 6 | 08012536 | Side Panel Lh-wheat |
|
- | |||||
| 7 | 3206275 | Panel, Bottom |
|
- | |||||
| 8 | 3205757 | Panel-back |
|
- | |||||
| 9 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 10 | 5303207391 | Support-subtop |
|
- | |||||
| 11 | 3205294 | Screw - Leveling (4) |
|
- | |||||
| 12 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 13 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 14 | 08012542 | Panel - Subtop |
|
- | |||||
| 15 | 3206095 | Shield-wire |
|
- | |||||
| 16 | 3051653 | Spacer Drawer Guide (2) |
|
- | |||||
| 17 | 3051654 | Guide, Front (2) |
|
- | |||||
| 18 | 5308015746 | Glide-drawer Rh |
|
- | |||||
| 19 | 5308003107 | Bumper (4) |
|
- | |||||
| 21 | 5303051098 | Terminal Block |
|
- | |||||
| 22 | K1145190 | Plate-grounding |
|
- | |||||
| 23 | 3201631 | Channel-hinge (2) |
|
$ 58.22 | |||||
| 24 | 5303131973 | Rack, Oven |
|
- | |||||
| 25 | 5303051856 | Cover, Wire |
|
- | |||||
| 26 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 27 | 316116400 | Receptacle (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 28 | 40A15 | Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 29 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 30 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 31 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 32 | 5301302338 | Ballast |
|
- | |||||
| 33 | 5303207446 | Front - Oven |
|
- | |||||
| 34 | 3205539 | Pan, Broiler |
|
- | |||||
| 35 | 3206091 | Insert - Broiler Pan |
|
- | |||||
| 37 | 5301314211 | Switch-oven Light |
|
$ 95.29 | |||||
| *29654 | 3934063 | Anti-tip Kit |
|
- | |||||
| 18A | 3051652 | Glide-drawer Lh |
|
- | |||||
| 6A | 08012535 | Panel, End, Rh (wheat) |
|
- | |||||
| 9A | 3017482 | Gusset-rear, Lh |
|
- |
