01 - Door
02 - Main Top
New Model Search:

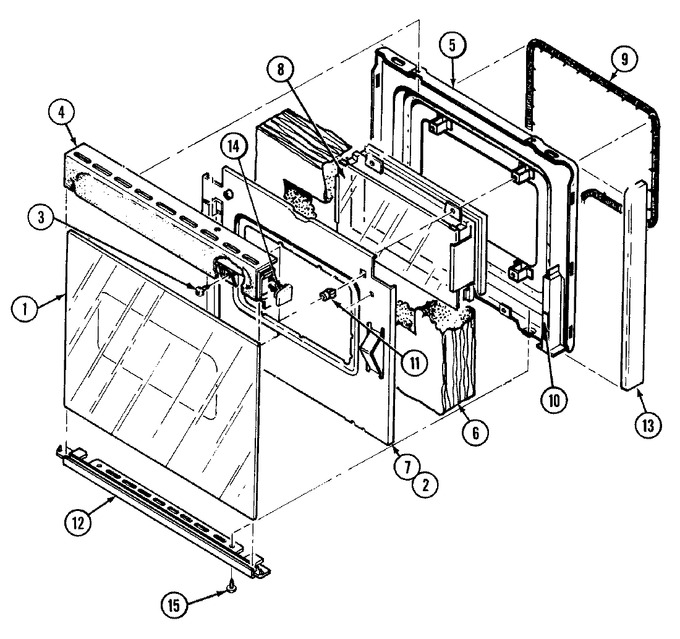

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 8010P085-60 | Spacer, Rubber | 01 |
|
- | ||||
| 3 | 7101P329-60 | Screw | 01 |
|
- | ||||
| 4 | 7101P329-60 | Screw | 01 |
|
- | ||||
| 4 | 7701P103-60 | Handle, Door (blk) | 01 |
|
- | ||||
| 5 | 2402W203-19 | Lining, Door | 01 |
|
- | ||||
| 6 | 7002P156-60 | Insulation, Door | 01 |
|
- | ||||
| 7 | 3601F232-45 | Baffle, Door | 01 |
|
- | ||||
| 8 | 7907P016-60 | Window Asy. | 01 |
|
- | ||||
| 9 | WP7212P043-60 | Seal, Silicone (Replaces: 7212P034-60) | 01 |
|
Immediately | $ 56.83 | |||
| 10 | 7103P045-60 | Nut, Nylon | 01 |
|
- | ||||
| 10 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 11 | 8010P075-60 | Spacer | 01 |
|
- | ||||
| 12 | 7744P105-60 | Trim, Bottom (blk)----na | 01 |
|
- | ||||
| 13 | 7744P055-60 | End Cap, Oven Door (blk) | 01 |
|
- | ||||
| 14 | 7744P076-60 | End Cap (lt) | 01 |
|
- | ||||
| 14 | 7744P075-60 | End Cap (rt) | 01 |
|
- | ||||
| 15 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 |
