01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


06 - Water & Ice Dispenser

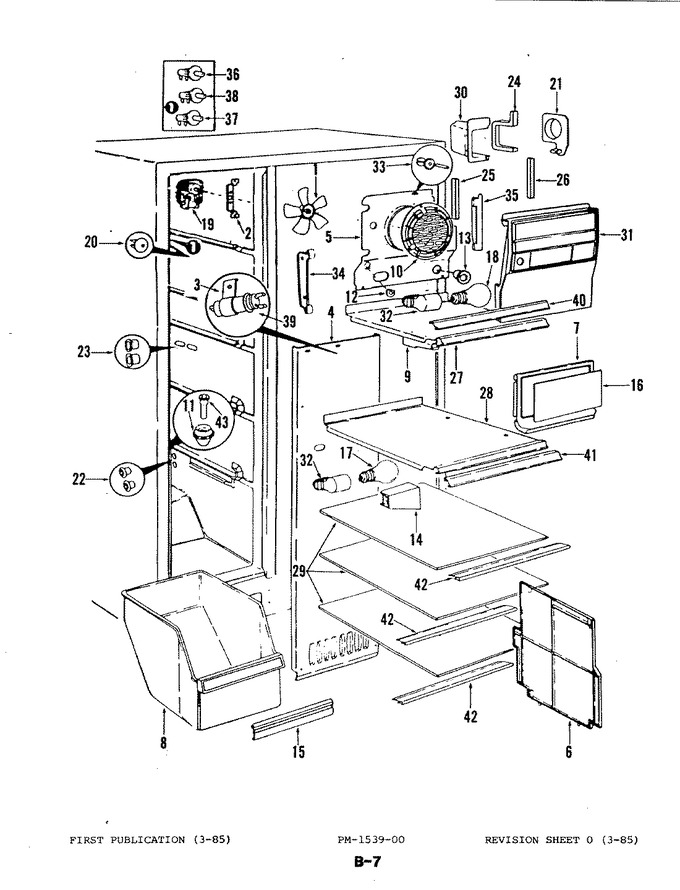

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52120-1		Blade, Fan Frzr.		Appelez-nous	-
2	57418-1		Clip,food Liner Mount.(slides)		Appelez-nous	-
2	64856-2		Bracket, Fan Motor		Appelez-nous	-
3	65225-1		Clamp		Appelez-nous	-
4	65224-10		Cover, Coil		Appelez-nous	-
5	62690-42		Cover, Coil		Appelez-nous	-
6	63010-1		Divider		Appelez-nous	-
7	65066-2		Door		Appelez-nous	-
8	59330-12		Drawer		Appelez-nous	-
9	63079-2		Glide		Appelez-nous	-
9	63079-3		Glide		Appelez-nous	-
10	62689-1		Fan Grid		Appelez-nous	-
11	52526-1		Grommet		Appelez-nous	-
12	59090-1		Bushing		Appelez-nous	-
13	26087-11		Plug Button		Appelez-nous	-
14	52197-1		Guard		Appelez-nous	-
15	65297-62		Handle		Appelez-nous	-
16	65281-15		Insert		Appelez-nous	-
17	W11679940		Light Bulb (25w,125v)   (Replaces: 2386-1)			Immediately	$ 10.17
18	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
19	56488-3		Motor, Fan Freezer		Appelez-nous	-
20	53821-1		Nut		Appelez-nous	-
21	54423-1		Orifice		Appelez-nous	-
22	53727-1		Retainer, Air Tunnel		Appelez-nous	-
23	WP210720		Rivet   (Replaces: 26397-9)				$ 12.14
23	57411-1		Retainer		Appelez-nous	-
23	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
23	400015-12		Screw		Appelez-nous	-
24	52077-10		Seal		Appelez-nous	-
25	52077-19		Seal,upper Coil Cover To Liner		Appelez-nous	-
26	52824-6		Coil Seal		Appelez-nous	-
27	53743-35		Frzr Shelf		Appelez-nous	-
28	53743-37		Frzr Shelf		Appelez-nous	-
29	62438-32		Shelf, Glass		Appelez-nous	-
30	53837-1		Shield		Appelez-nous	-
31	55664-34		Shield		Appelez-nous	-
32	62028-3		Spacer		Appelez-nous	-
32	29814-2		Receptacle, Light		Appelez-nous	-
33	59920-1		Stud, Mounting Coil Cover		Appelez-nous	-
33	53914-2		Stud		Appelez-nous	-
33	21697-14		Stud		Appelez-nous	-
34	53687-2		Support		Appelez-nous	-
35	54424-2		Support		Appelez-nous	-
36	ES18809		Switch   (Replaces: 56432-1)				$ 11.30
37	ES18809		Switch   (Replaces: 56432-1)				$ 11.30
38	56432-2		Switch		Appelez-nous	-
39	65154-7		Thermistor		Appelez-nous	-
40	53752-33		Trim		Appelez-nous	-
41	53752-33		Trim		Appelez-nous	-
42	59746-25		Trim		Appelez-nous	-
43	65264-1		Wire Harness		Appelez-nous	-
43	26527-5		Drain Tube		Appelez-nous	-
