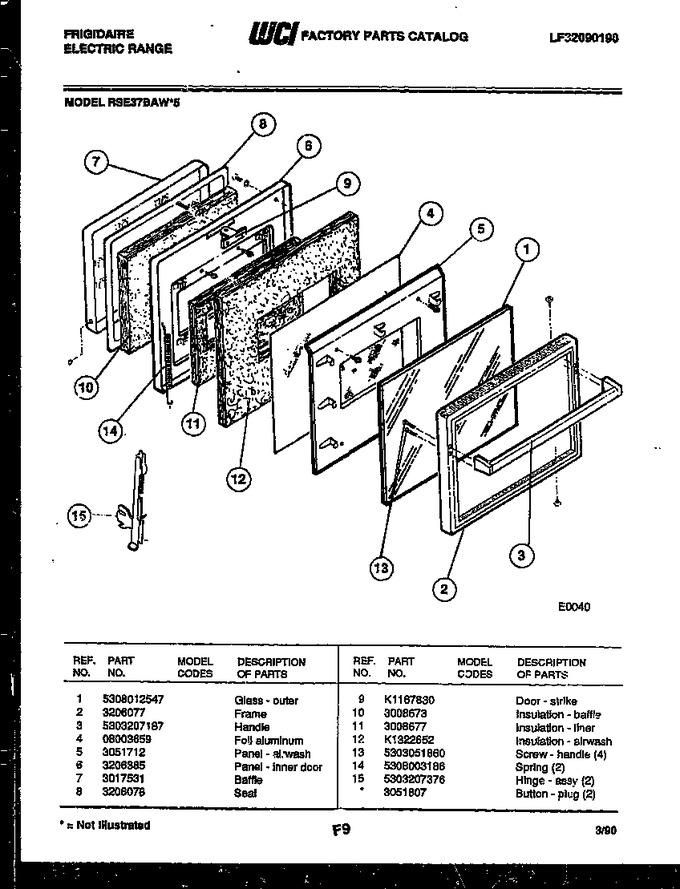

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012547 | Glass - Outer |
|
- | |||||
| 2 | 3206077 | Frame |
|
- | |||||
| 3 | 5303207187 | Handle |
|
- | |||||
| 4 | 08003659 | Foil - Aluminum |
|
- | |||||
| 5 | 3051712 | Panel, Airwash |
|
- | |||||
| 6 | 3206385 | Panel - Inner Door |
|
- | |||||
| 7 | 3017531 | Baffle |
|
- | |||||
| 8 | 3206078 | Seal |
|
- | |||||
| 9 | K1167830 | Door - Strike |
|
- | |||||
| 10 | 3008673 | Insulation, Baffle |
|
- | |||||
| 11 | 3008677 | Insulation, Liner |
|
- | |||||
| 12 | K1322652 | Insulation, Airwash |
|
- | |||||
| 13 | 5303051860 | Screw, Handle (4) |
|
- | |||||
| 14 | 5308003186 | Spring (2) |
|
- | |||||
| 15 | 5303207376 | Hinge - Assy (2) |
|
- | |||||
| *62648 | 3051807 | Button, Plug (2) |
|
- |
