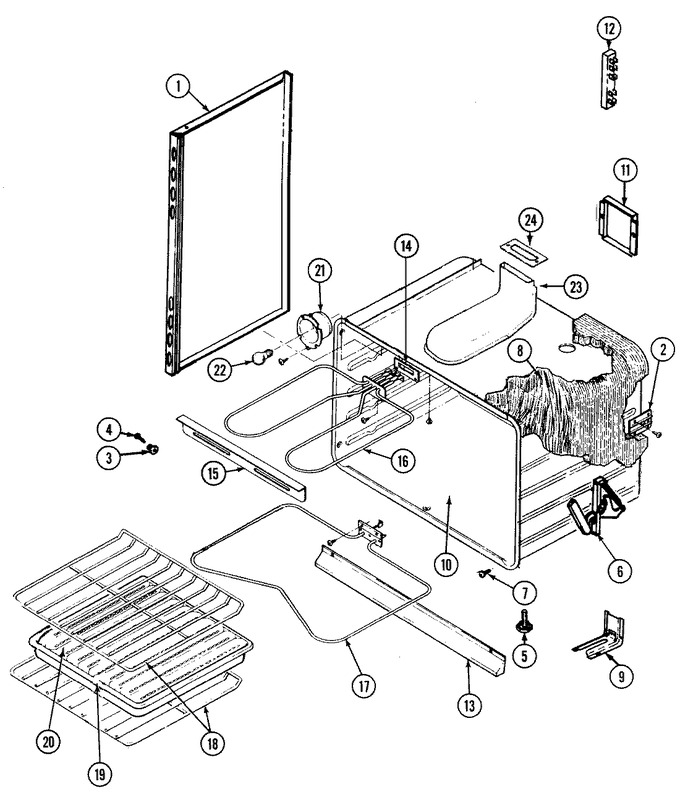

01 - Body
02 - Door
03 - Main Top
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2618F098-70 | Side, Panel - Right (black) | 05 |
|
- | ||||
| 1 | 2618F081-70 | Panel, Side | 01 |
|
- | ||||
| 1 | 2618F097-70 | Panel, Side (rt-blk) | 05 |
|
- | ||||
| 1 | 2618F080-70 | Panel, Side | 01 |
|
- | ||||
| 2 | 3807F400-51 | Support,oven Rear | 01 |
|
- | ||||
| 3 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 01 |
|
$ 7.07 | ||||
| 4 | W11772394 | Screw (Replaces: 7101P334-60) | 01 |
|
Immediately | $ 10.94 | |||
| 5 | 7101P306-60 | Leg, Leveling | 01 |
|
- | ||||
| 6 | 7106P055-60 | Hinge | 01 |
|
$ 52.22 | ||||
| 7 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 8 | 4804F032-60 | Insulation, Oven Wrapper | 01 |
|
- | ||||
| 8 | 4804F031-60 | Insulation, Oven Back | 01 |
|
- | ||||
| 9 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 01 |
|
Immediately | $ 4.69 | |||
| 9 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 01 |
|
$ 26.33 | ||||
| 10 | 4011F176-51 | Bottom, Main | 01 |
|
- | ||||
| 11 | 4005F411-51 | Cover, Wire | 01 |
|
- | ||||
| 11 | 4005F413-51 | Cover, Access | 01 |
|
- | ||||
| 12 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 01 |
|
Immediately | $ 31.65 | |||
| 13 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 13 | 3604W155-70 | Shield, Lower Vent (blk) | 01 |
|
- | ||||
| 13 | 3414F066-51 | Tubing, Conduit | 01 |
|
- | ||||
| 14 | 8114P336-60 | Cover Lock Slot | 01 |
|
- | ||||
| 15 | 3807F389-45 | Support, Element | 01 |
|
- | ||||
| 15 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 16 | Y04000057 | Element, Broil | 01 |
|
$ 94.48 | ||||
| 17 | WP74003019 | Element, Bake (Replaces: Y04000058) | 01 |
|
Immediately | $ 51.10 | |||
| 18 | WPW10282492 | Rack (Replaces: 7801P040-60) | 01 |
|
Immediately | $ 65.15 | |||
| 19 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 20 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 21 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 01 |
|
Immediately | $ 66.10 | |||
| 22 | 4006W112-45 | Box, Vent | 01 |
|
- | ||||
| 22 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 22 | 40A15 | Bulb, Oven (Replaces: 7407P095-60) | 01 |
|
Immediately | $ 1.98 | |||
| 23 | 4006W112-45 | Box, Vent | 01 |
|
- | ||||
| 24 | 7201P055-60 | Gasket, Vent | 01 |
|
- |
