01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice And Water Dispenser


06 - Unit Compartment & System

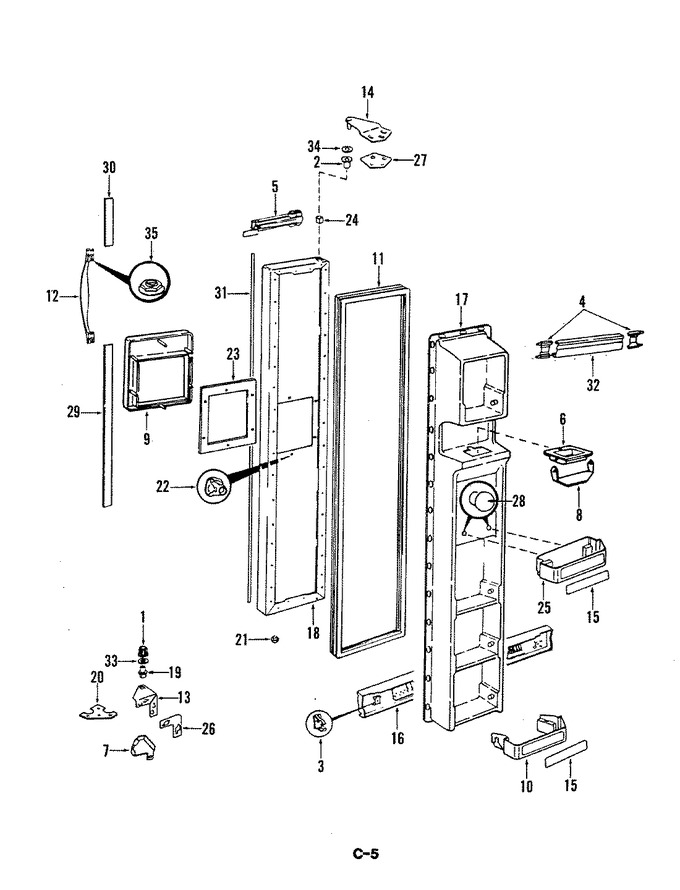

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66035-1		Bushing		Appelez-nous	-
1	52614-1		Bracket, Closer		Appelez-nous	-
2	66036-2		Bushing, Upper Hinge		Appelez-nous	-
3	52854-3		Clip, Kickplate		Appelez-nous	-
5	54485-1		Closer, Door		Appelez-nous	-
6	63020-2		Collar		Appelez-nous	-
7	65131-1		Wire Cover		Appelez-nous	-
8	63075-1		Door, Ice Chute		Appelez-nous	-
9	60482-25		Escutcheon		Appelez-nous	-
10	65701-5		Shelf Front		Appelez-nous	-
11	53712-1		Gasket		Appelez-nous	-
12	63686-3		Handle		Appelez-nous	-
13	60630-14		Hinge		Appelez-nous	-
14	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
15	65571-10		Insert		Appelez-nous	-
16	56478-32		Kickplate		Appelez-nous	-
17	65700-3		Liner, Door		Appelez-nous	-
18	63069-15-AM		Panel, Outer Door		Appelez-nous	-
19	55479-1		Pin		Appelez-nous	-
20	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
21	495034-900		Plug Button, Door		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
22	9986-12		Screw,door Liner		Appelez-nous	-
22	WP90767		Screw   (Replaces: 400014-1)			Immediately	$ 7.04
22	65211-1		Retainer, Nameplate		Appelez-nous	-
22	403062-5		Screw		Appelez-nous	-
23	63057-1		Seal, Escutcheon		Appelez-nous	-
24	55990-1		Seal Sleeve		Appelez-nous	-
25	65701-6		Shelf Front		Appelez-nous	-
26	60626-2		Shim		Appelez-nous	-
27	65031-1		Shim, Upper Hinge		Appelez-nous	-
28	65660-1		Shelf Stud		Appelez-nous	-
29	65774-6		Handle Ext		Appelez-nous	-
30	65774-7		Handle Ext		Appelez-nous	-
31	65773-13		Trim		Appelez-nous	-
33	420028-1		Washer		Appelez-nous	-
34	52185-2		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
