02 - Backguard


03 - Cooktop Parts


04 - Broiler Parts


05 - Door Parts


06 - Drawer Parts


07 - Body Parts

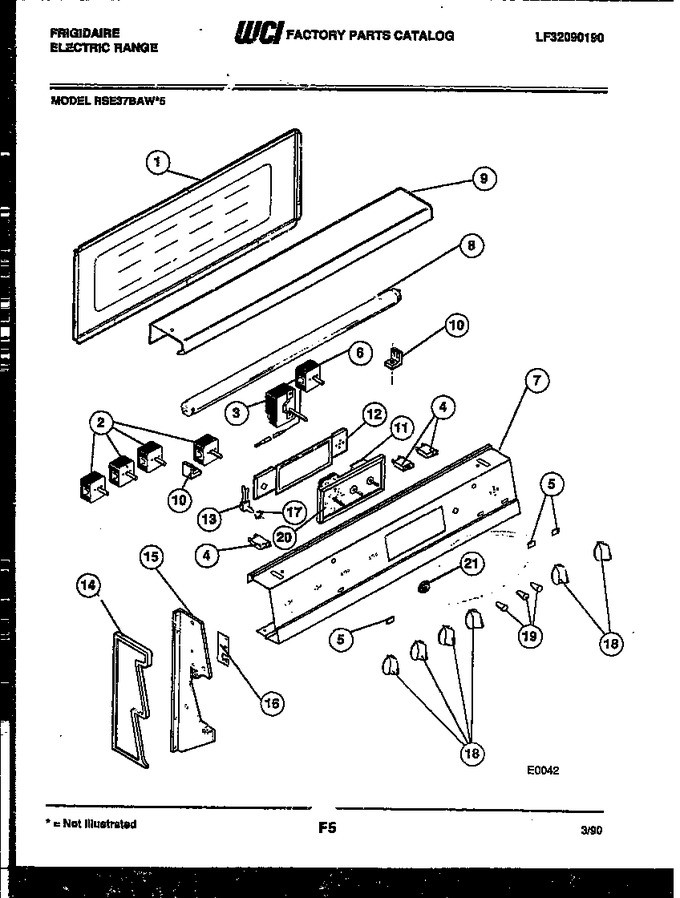

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017470		Cover, Wire.		Appelez-nous	-
2	5301313767		Switch-s/u Lg. (2)		Appelez-nous	-
3	5308014203		Thermostat		Appelez-nous	-
4	3206088		Light - Ind (125v)		Appelez-nous	-
5	5308006417		Lens - Ind Light (3)				$ 19.06
6	5308015771		Switch, Select		Appelez-nous	-
7	08016528		Panel - Backguard		Appelez-nous	-
8	5308012712		Bulb - Fluorscent		Appelez-nous	-
9	K5137401		Shield - Light		Appelez-nous	-
10	08012748		Bracket, Lamp (2)		Appelez-nous	-
11	08012577		Clock		Appelez-nous	-
12	K5296301		Bracket - Clock		Appelez-nous	-
13	5308012754		Switch, Fluorescent		Appelez-nous	-
14	08012745		End Cap, Rh		Appelez-nous	-
15	08015966		Support-backguard, Rh		Appelez-nous	-
16	5308012538		Bracket, Hinge (2)		Appelez-nous	-
17	3051832		Nut-switch Mtg		Appelez-nous	-
18	5308015741		Knob, S/u (6)				$ 91.02
19	3016387		Knob - Clock		Appelez-nous	-
20	5308004154		Glass, Clock		Appelez-nous	-
21	08012572		Nut-sw. Mtg. Knurled		Appelez-nous	-
14A	08012746		End Cap, Lh		Appelez-nous	-
15A	08015967		Support, Backguard Lh		Appelez-nous	-
2A	5303051540		Switch, S/u Sm (2)		Appelez-nous	-
4A	5308012563		Light - Ind (250v) (2)		Appelez-nous	-
