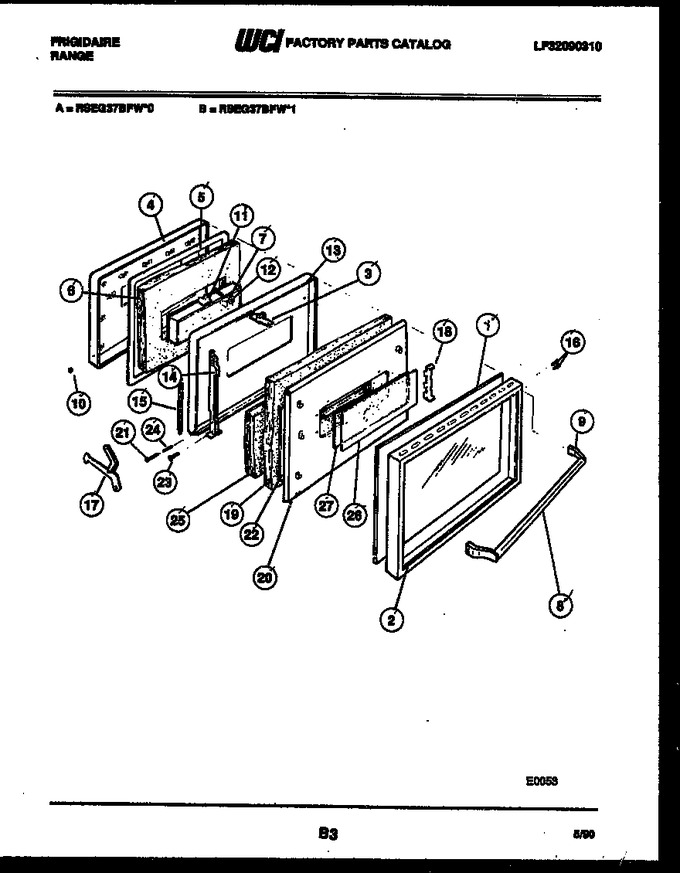

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308012546		Glass, Outer		Appelez-nous	-
2	3206077		Frame, Door		Appelez-nous	-
3	5301167830		Strike		Appelez-nous	-
4	3017634		Baffle, Oven Door		Appelez-nous	-
5	5303051704		Gasket - Oven Door				$ 388.08
6	3008673		Insulation, Baffle		Appelez-nous	-
7	3205235		Window Assembly		Appelez-nous	-
8	5303207187		Handle		Appelez-nous	-
10	3051807		Plug Button		Appelez-nous	-
11	5303051859		Screw 10 X 24		Appelez-nous	-
12	3051785		Washer, Padded		Appelez-nous	-
13	3017530		Door Liner		Appelez-nous	-
14	5303051822		Channel (2)		Appelez-nous	-
15	5308003186		Door, Spring		Appelez-nous	-
16	5303051860		Screw, Handle (4)		Appelez-nous	-
17	5308003183		Door Hinge Arm				$ 90.35
18	3204652		Retainer, Glass (2)		Appelez-nous	-
19	5301322652		Insulation, Airwash		Appelez-nous	-
20	3051712		Panel, Airwash		Appelez-nous	-
21	5308012004		Rivet - Sq Hd (2)				$ 8.29
22	3051862		Foil, Aluminum		Appelez-nous	-
23	5308012004		Axle - Hinge (2)				$ 8.29
24	08950070		Roller - Package Oven Door (2)		Appelez-nous	-
25	3008677		Insulation, Liner		Appelez-nous	-
26	5303051713		Glass, Inner		Appelez-nous	-
27	3051706		Gasket, Window		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
