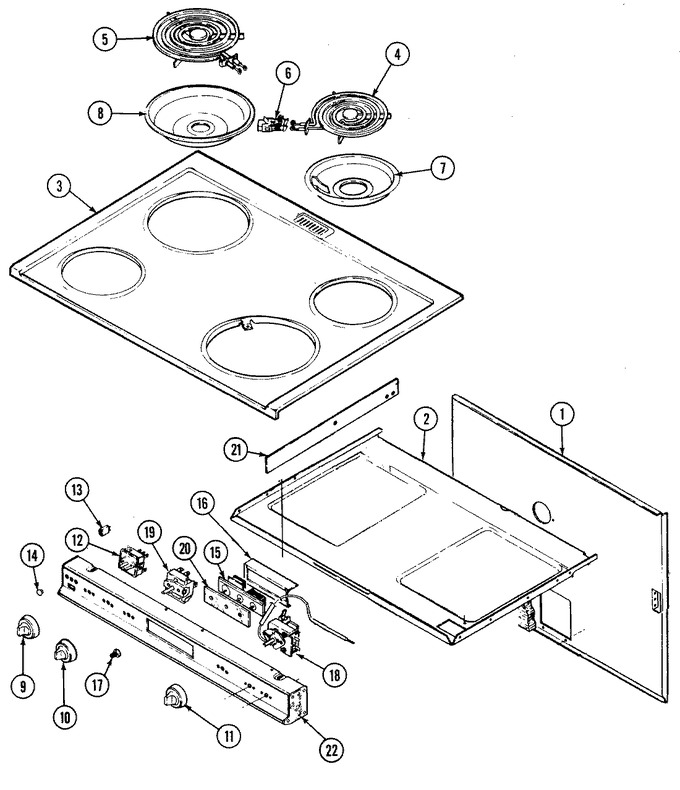

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door
02 - Main Top
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F205-80 | Back, Main | 01 |
|
- | ||||
| 2 | 4011F224-80 | Box, Burner | 01 |
|
- | ||||
| 3 | 7112P087-60 | Clip, Top Locking | 01 |
|
- | ||||
| 3 | 2002W084-81 | Top, Main | 01 |
|
- | ||||
| 3 | 7706P301-60 | Extrusion, Filler | 01 |
|
- | ||||
| 4 | WP660532 | Element (small) (Replaces: Y04000032) | 01 |
|
Immediately | $ 36.90 | |||
| 5 | WP3191454 | Element, Surface 8``x5t,chr (Replaces: Y04000031) | 01 |
|
$ 163.63 | ||||
| 6 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 01 |
|
Immediately | $ 28.45 | |||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 7 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P008-60) | 01 |
|
Immediately | $ 12.05 | |||
| 8 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P009-60) | 01 |
|
Immediately | $ 15.56 | |||
| 9 | WP7737P030-60 | Knob, Inf. Switch (Replaces: 7737P033-60) | 01 |
|
$ 17.81 | ||||
| 10 | 7739P041-60 | Knob, Selector | 01 |
|
- | ||||
| 11 | 7735P036-60 | Knob, T-stat | 01 |
|
- | ||||
| 12 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 12 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 12 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 13 | W10127320 | Light, Indicator | 01-03 |
|
- | ||||
| 13 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 04 |
|
$ 106.11 | ||||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 04 |
|
$ 6.73 | ||||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 01-03 |
|
$ 6.73 | ||||
| 15 | 7602P105-60 | Clock | 01 |
|
- | ||||
| 15 | 8312P019-60 | Shaft, Bit Generator | 01 |
|
- | ||||
| 16 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 16 | 3801F223-45 | Bracket, Clock | 01 |
|
- | ||||
| 17 | 7711P422-60 | Knob, Clock | 01 |
|
- | ||||
| 18 | 7404P072-60 | Thermostat | 01 |
|
- | ||||
| 18 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 19 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 19 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) | 01 |
|
$ 131.41 | ||||
| 20 | 7902P369-60 | Glass, Clock | 01 |
|
- | ||||
| 21 | 3604F173-51 | Shield, Heat (lt) | 01 |
|
- | ||||
| 21 | 3604F174-51 | Shield, Heat (rt) | 01 |
|
- | ||||
| 22 | 3801F256-51 | Bracket, Panel | 01 |
|
- | ||||
| 22 | 7722P115-60 | Panel, Control | 01 |
|
- | ||||
| 22 | 5195D096-60 | Harness | 01 |
|
- | ||||
| 22 | 5175D064-60 | Harness, To Cooktop | 01 |
|
- | ||||
| 23 | 8113P023-60 | Manual, Use & Care | 01 |
|
- |
