02 - Backguard
03 - Cooktop Parts
04 - Broiler Parts
05 - Door Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:

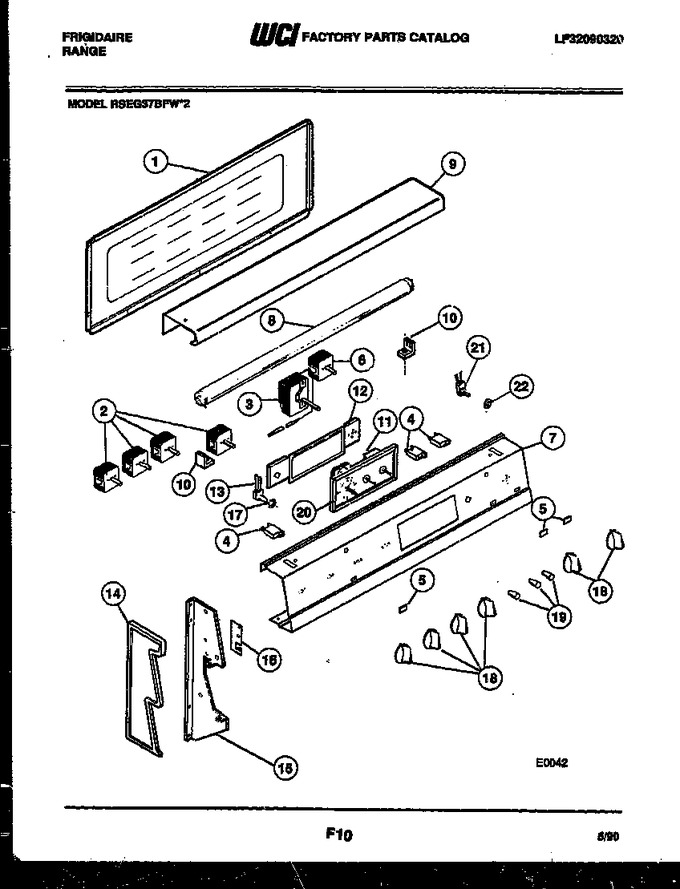

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5301313767 | Switch-s/u Lge (2) |
|
- | |||||
| 2 | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 3 | 5308014203 | Thermostat |
|
- | |||||
| 4 | 3206088 | Light, Ind S/u |
|
- | |||||
| 4 | 5308012563 | Light - Ind Clean/ov (2) |
|
- | |||||
| 5 | 5308012578 | Lens - Ind Lt (3) |
|
- | |||||
| 6 | 5308015771 | Switch, Select |
|
- | |||||
| 7 | 3203205 | Panel - Backguard |
|
- | |||||
| 8 | 5308012712 | Bulb-fluorescent |
|
- | |||||
| 9 | 5308016520 | Shield-light |
|
- | |||||
| 10 | 08012748 | Bracket, Lamp (2) |
|
- | |||||
| 11 | 08012577 | Clock |
|
- | |||||
| 12 | 08015861 | Bracket, Clock |
|
- | |||||
| 13 | 5308012754 | Switch, Fluorescent |
|
- | |||||
| 14 | 08012745 | End Cap, Rh |
|
- | |||||
| 15 | 5305025201 | Support - Bkgrd Rh |
|
- | |||||
| 16 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 17 | 3051832 | Nut-switch Mtg |
|
- | |||||
| 18 | 5308012741 | Knob - S/u (6) |
|
- | |||||
| 19 | 3016387 | Knob-clock (3) |
|
- | |||||
| 20 | 5308004154 | Glass, Clock |
|
- | |||||
| 21 | 3205397 | Switch, Oven Light |
|
- | |||||
| 22 | 08012572 | Nut - Switch Mtg |
|
- | |||||
| 14A | 08012746 | End Cap, Lh |
|
- | |||||
| 15A | 08015967 | Support - Bkgrd Lh |
|
- |
