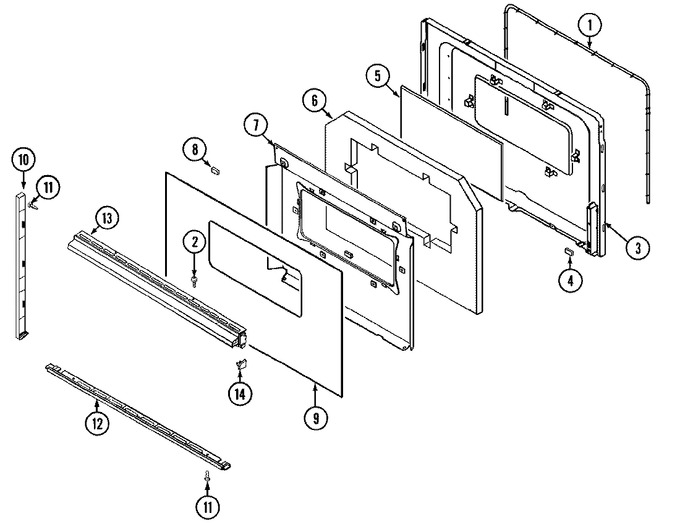

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7212P043-60 | Seal, Door (Replaces: 7212P043-60) | 11 |
|
Immediately | $ 56.83 | |||
| 2 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 11 |
|
$ 15.94 | ||||
| 3 | 2402W213-19 | Lining, Door | 11 |
|
- | ||||
| 4 | 8010P085-60 | Spacer, Rubber | 11 |
|
- | ||||
| 5 | 7902P319-60 | Glass, Door (inner)----na | 11 |
|
- | ||||
| 6 | 7002P158-60 | Insulation, Door | 11 |
|
- | ||||
| 7 | 3601F240-80 | Baffle, Door | 11 |
|
- | ||||
| 7 | 7101P209-60 | Screw | 11 |
|
- | ||||
| 8 | 8270P095-60 | Tape, Double Sided | 11 |
|
- | ||||
| 9 | 7902P321-60 | Glass, Door (blk) | 11 |
|
- | ||||
| 10 | 7744P055-60 | End Cap, Oven Door (blk) | 11 |
|
- | ||||
| 10 | 74002084 | End Cap, Door (blk) | 25 |
|
- | ||||
| 11 | W11233072 | Screw (Replaces: 7101P290-60) | 11 |
|
Immediately | $ 12.62 | |||
| 12 | 7744P105-60 | Trim, Bottom (blk)----na | 11 |
|
- | ||||
| 13 | 7701P144-60 | Handle, Door (blk) | 25 |
|
- | ||||
| 13 | 7701P103-60 | Handle, Door (blk) | 11 |
|
- | ||||
| 14 | 7744P076-60 | End Cap (lt) | 11 |
|
- | ||||
| 14 | 7744P075-60 | End Cap (rt) | 11 |
|
- |
