01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


06 - Water & Ice Dispenser

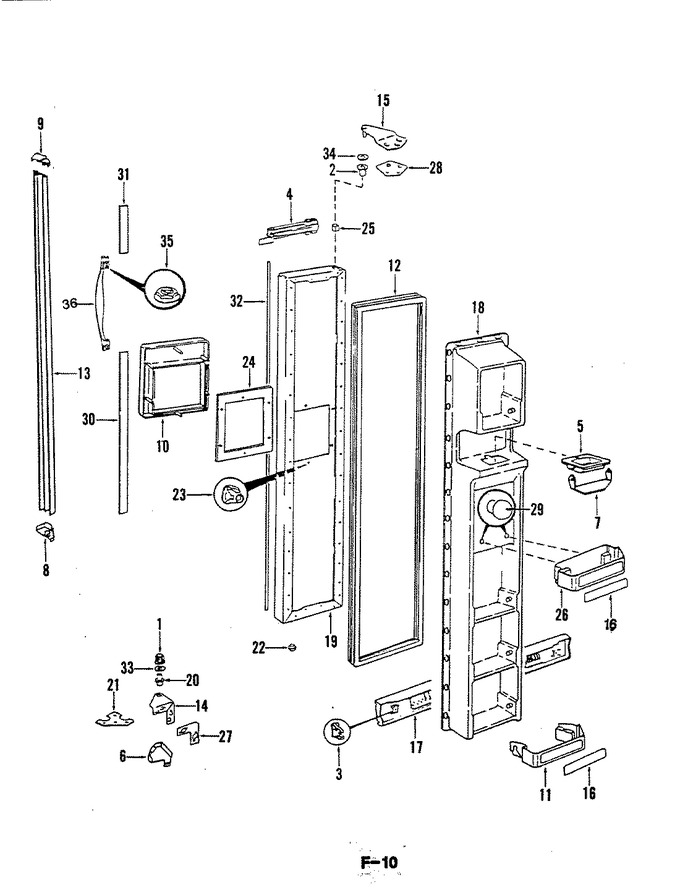

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52614-1		Bracket, Closer		Appelez-nous	-
1	66035-1		Bushing		Appelez-nous	-
2	66036-2		Bushing, Upper Hinge		Appelez-nous	-
3	52854-3		Clip, Kickplate		Appelez-nous	-
4	54485-1		Closer, Door		Appelez-nous	-
5	63020-2		Collar		Appelez-nous	-
6	65131-1		Wire Cover		Appelez-nous	-
7	63075-1		Door, Ice Chute		Appelez-nous	-
8	57947-1		End Cap		Appelez-nous	-
9	57947-2		End Cap		Appelez-nous	-
10	60482-25		Escutcheon		Appelez-nous	-
11	65701-6		Shelf Front		Appelez-nous	-
12	53712-1		Gasket		Appelez-nous	-
13	56835-36		Handle		Appelez-nous	-
14	60630-14		Hinge		Appelez-nous	-
15	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
16	52613-1		Insulation, Closer		Appelez-nous	-
16	65571-16		Insert		Appelez-nous	-
17	56478-31		Kickplate		Appelez-nous	-
18	65700-3		Liner, Door		Appelez-nous	-
19	63069-15-WW		Panel, Outer Door		Appelez-nous	-
20	55479-1		Pin		Appelez-nous	-
21	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
22	495034-900		Plug Button, Door		Appelez-nous	-
23	9986-12		Screw,door Liner		Appelez-nous	-
23	WP90767		Screw   (Replaces: 400014-1)			Immediately	$ 7.04
23	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
23	65211-1		Retainer, Nameplate		Appelez-nous	-
23	403062-5		Screw		Appelez-nous	-
24	63057-1		Seal, Escutcheon		Appelez-nous	-
25	55990-1		Seal Sleeve		Appelez-nous	-
26	65709-6		Shelf, Frz. Door		Appelez-nous	-
27	60626-2		Shim		Appelez-nous	-
28	65031-1		Shim, Upper Hinge		Appelez-nous	-
29	65660-1		Shelf Stud		Appelez-nous	-
30	65771-8		Pan, Frz.		Appelez-nous	-
31	65774-7		Handle Ext		Appelez-nous	-
32	65773-13		Trim		Appelez-nous	-
32	420063-1		Washer		Appelez-nous	-
33	54233-2		Washer		Appelez-nous	-
33	420028-1		Washer		Appelez-nous	-
34	52185-2		Washer		Appelez-nous	-
35	434003-506		Fastener		Appelez-nous	-
36	63686-3		Handle		Appelez-nous	-
