Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 5303201013 Gasket-refr Door, Magnetic Appelez-nous -
3 5303274656 Panel-inner Door, Refr Appelez-nous -
4 5303280725 Rack-door, (4) Appelez-nous -
5 5316101801 Support-door Rack, Rh Appelez-nous -
6 5316108001 Support-door Rack, Lh Appelez-nous -
7 5303280631 Door-dairy Appelez-nous -
14 5315230801 Plug-button, Refr/fzr Door Appelez-nous -
15 5303916944 Panel-refr Door, White Appelez-nous -
17 5308010238 Handle End Appelez-nous -
18 5308009803 Handle-door, Teakwood Vinyl, Refr/frzr, (2) Appelez-nous -
20 5308010239 Handle End Appelez-nous -
21 5308013645 Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 Appelez-nous -
22 5308012007 Bearing-hinge Appelez-nous -
22 5303001022 Bearing-hinge Upper Appelez-nous -
23 5303001020 Screw, Cr Flat Head, 8-32(d) X 1/2 Appelez-nous -
34 5308000790 Bumper, Light Switch Special Order $ 3.86

35 5303200272 Closer-door Appelez-nous -
58 5308002748 Screw Appelez-nous -
*55755 5303007739 Insulation, Door, Fiberglass, (bulk) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

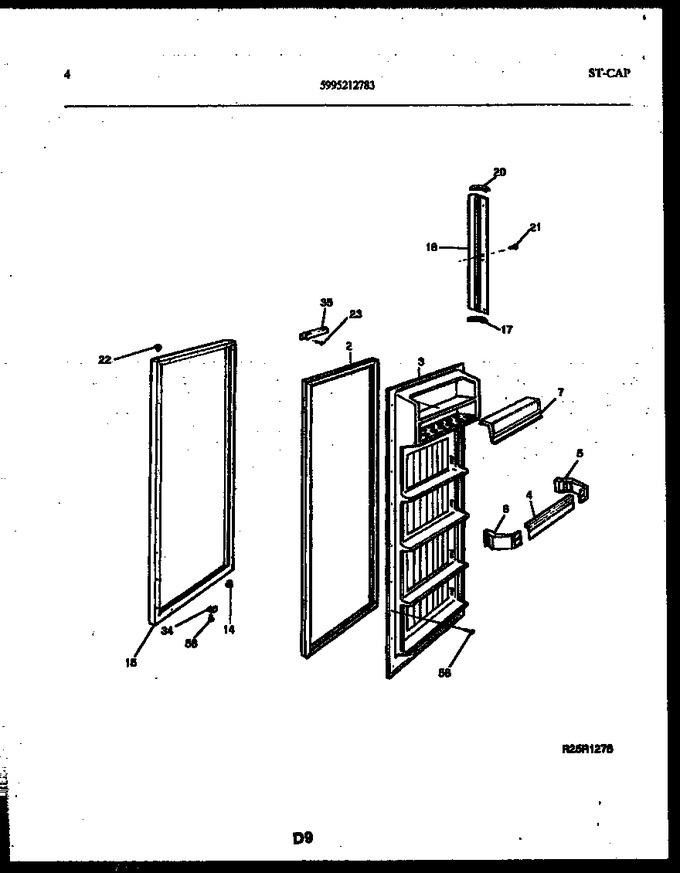

Diagram for RSG192NCW1
