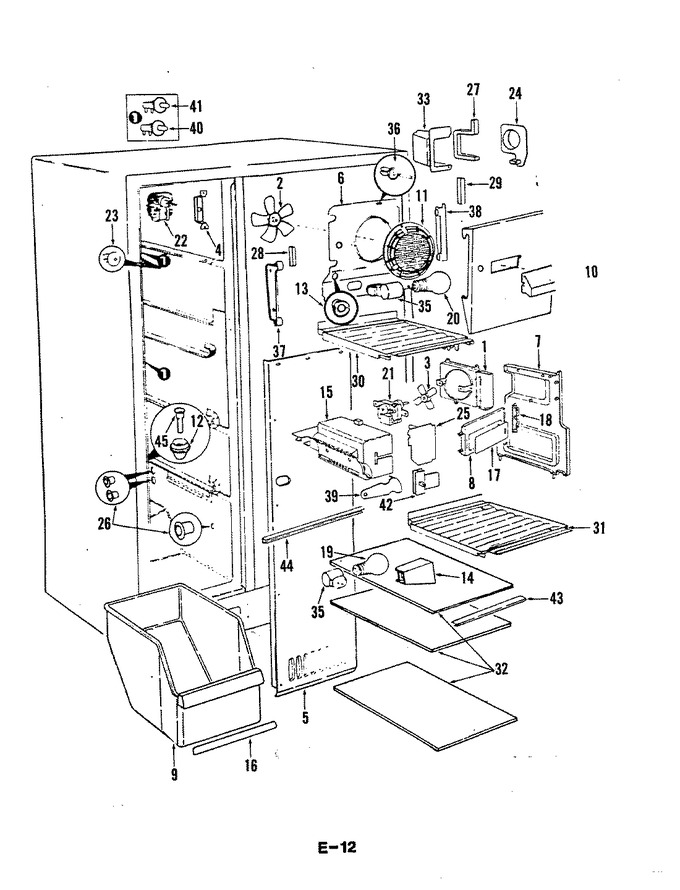

01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Unit Compartment & System
06 - Water & Ice Dispenser
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 65639-1 | Plenum Back |
|
- | |||||
| 2 | 52120-1 | Blade, Fan Frzr. |
|
- | |||||
| 3 | 65688-2 | Blade, Fan |
|
- | |||||
| 4 | 64856-2 | Bracket, Fan Motor |
|
- | |||||
| 4 | 54653-29 | Lead |
|
- | |||||
| 4 | 57418-1 | Clip,food Liner Mount.(slides) |
|
- | |||||
| 5 | 65224-10 | Cover, Coil |
|
- | |||||
| 6 | 62690-44 | Cover, Coil |
|
- | |||||
| 6 | 60313-1 | Cup, Shelf |
|
- | |||||
| 7 | 65623-1 | Divider |
|
- | |||||
| 8 | 65629-2 | Im Door |
|
- | |||||
| 9 | 65577-4 | Drawer, Frz. |
|
- | |||||
| 10 | 65653-1 | Im Duct |
|
- | |||||
| 11 | 62689-1 | Fan Grid |
|
- | |||||
| 12 | 52526-1 | Grommet |
|
- | |||||
| 13 | 59090-1 | Bushing |
|
- | |||||
| 14 | 52197-1 | Guard |
|
- | |||||
| 15 | 65621-1 | Plenum |
|
- | |||||
| 16 | 65583-31 | Insert |
|
- | |||||
| 17 | 65755-3 | Insert |
|
- | |||||
| 18 | 65630-1 | Im Encl Latch |
|
- | |||||
| 19 | W11679940 | Light Bulb (25w,125v) (Replaces: 2386-1) |
|
Immediately | $ 10.17 | ||||
| 20 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) |
|
Immediately | $ 1.98 | ||||
| 21 | 65754-1 | Party Ice Motor |
|
- | |||||
| 22 | 56488-3 | Motor, Fan Freezer |
|
- | |||||
| 23 | 53821-1 | Nut |
|
- | |||||
| 24 | 54423-1 | Orifice |
|
- | |||||
| 25 | 65638-1 | Control Board |
|
- | |||||
| 26 | 405012-1 | Screw |
|
- | |||||
| 26 | W11233072 | Screw (Replaces: 400016-1) |
|
Immediately | $ 12.62 | ||||
| 26 | WP67006908 | Screw (Replaces: 400022-1) |
|
Immediately | $ 7.16 | ||||
| 26 | 53727-1 | Retainer, Air Tunnel |
|
- | |||||
| 26 | 400015-1 | Screw |
|
- | |||||
| 27 | 52077-10 | Seal |
|
- | |||||
| 28 | 52077-19 | Seal,upper Coil Cover To Liner |
|
- | |||||
| 29 | 52824-6 | Coil Seal |
|
- | |||||
| 30 | 65651-7 | Shelf, Frz. |
|
- | |||||
| 31 | 65651-8 | Shelf, Frz. |
|
- | |||||
| 32 | 65598-18 | Glass Shelf |
|
- | |||||
| 33 | 53837-1 | Shield |
|
- | |||||
| 35 | 29814-2 | Receptacle, Light |
|
- | |||||
| 35 | 65512-1 | Spacer |
|
- | |||||
| 36 | 59920-1 | Stud, Mounting Coil Cover |
|
- | |||||
| 37 | 53687-2 | Support |
|
- | |||||
| 38 | 54424-2 | Support |
|
- | |||||
| 39 | 65631-1 | Plenum Front |
|
- | |||||
| 40 | ES18809 | Switch (Replaces: 56432-1) |
|
$ 11.30 | |||||
| 41 | 56432-2 | Switch |
|
- | |||||
| 42 | 65716-1 | Switch, Plenum |
|
- | |||||
| 43 | 65568-2 | Trim |
|
- | |||||
| 44 | 65561-411 | Trim, Shelf |
|
- | |||||
| 45 | 63087-2 | Wire Harness |
|
- | |||||
| 45 | 65676-1 | Wire Harness |
|
- | |||||
| 45 | 26527-5 | Drain Tube |
|
- | |||||
| NI | 65654-2 | Shield, Light |
|
- |
