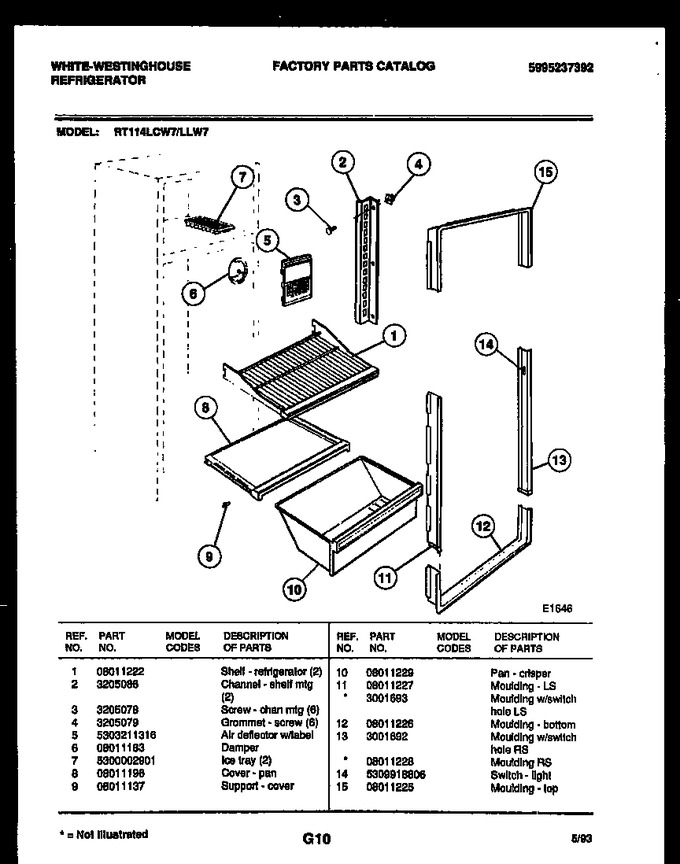

02 - Door Parts
03 - Cabinet Parts
04 - Inner Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08011222 | Shelf - Refrigerator (2) |
|
- | |||||
| 2 | 3205086 | Channel-shelf Mtg (2) |
|
- | |||||
| 3 | 3205078 | Screw-chan Mtg (6) |
|
- | |||||
| 4 | 3205079 | Grommet-screw (6) |
|
- | |||||
| 5 | 5303211316 | Air Deflector W/ Label |
|
- | |||||
| 6 | 08011183 | Damper |
|
- | |||||
| 7 | 5300002901 | Ice Tray (2) |
|
- | |||||
| 8 | 08011196 | Cover-pan |
|
- | |||||
| 9 | 08011137 | Support - Cover |
|
- | |||||
| 10 | 08011229 | Pan-crisper |
|
- | |||||
| 11 | 08011227 | Moulding-ls |
|
- | |||||
| 12 | 08011226 | Moulding-bottom |
|
- | |||||
| 13 | 3001692 | Moulding W/ Switch Hole Rs |
|
- | |||||
| 14 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 15 | 08011225 | Moulding-top |
|
- | |||||
| 11A | 3001693 | Moulding W/ Switch Hole Ls (non-illustrated) |
|
- | |||||
| 13A | 08011228 | Moulding Rs (non-illustrated) |
|
- |
