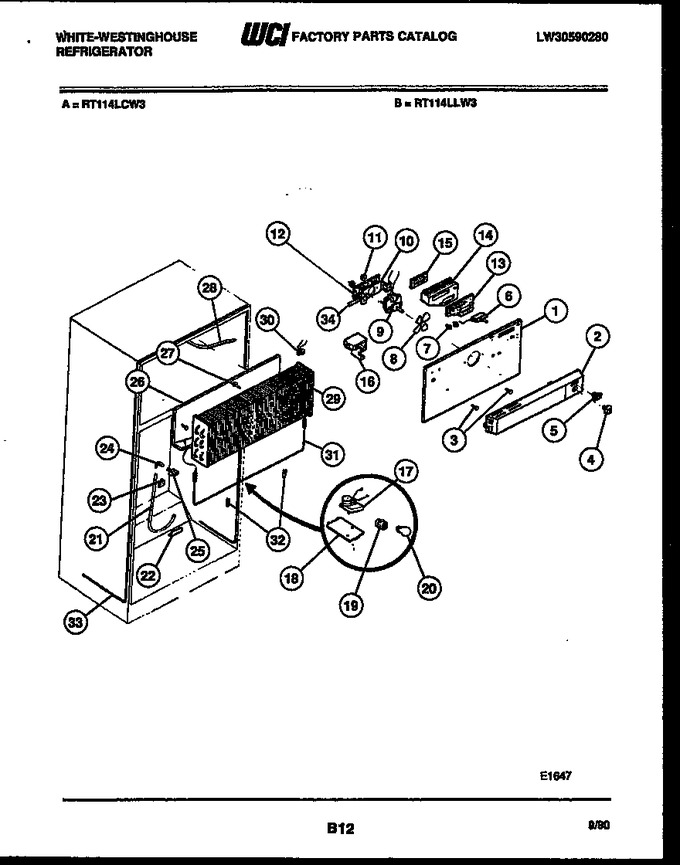

SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Inner Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303211321		Cover-evap Coil		Appelez-nous	-
2	3205111		Cover-fan		Appelez-nous	-
3	08011122		Screw-cover Mtg (4)		Appelez-nous	-
4	08011208		Knob - Temp Control		Appelez-nous	-
5	08011210		Switch - Power Miser		Appelez-nous	-
6	08011182		Control - Temperature		Appelez-nous	-
7	08011134		Grommet (2)		Appelez-nous	-
8	5308011156		Fan Blade		Appelez-nous	-
9	5308011165		Motor-fan		Appelez-nous	-
10	5303211320		Bracket - Motor Mtg		Appelez-nous	-
11	08011129		Nut-keps (2)		Appelez-nous	-
12	5303211318		Rear Support Motor		Appelez-nous	-
13	08011203		Gasket		Appelez-nous	-
14	08011220		Spacer		Appelez-nous	-
15	08011153		Gasket		Appelez-nous	-
16	08011205		Spacer		Appelez-nous	-
17	5308000035		Timer - Defrost		Appelez-nous	-
18	08011178		Cover-timer		Appelez-nous	-
19	08011171		Light Socket		Appelez-nous	-
20	3201908		Light Bulb		Appelez-nous	-
21	08011149		Drain Hose		Appelez-nous	-
22	08011157		Bracket-hose		Appelez-nous	-
23	5303211317		Retainer-hose		Appelez-nous	-
24	3001706		Elbow-hose		Appelez-nous	-
25	08011170		Drain Cup		Appelez-nous	-
26	08011216		Drain Tough		Appelez-nous	-
27	08011136		Support-coil Cover (2)		Appelez-nous	-
28	3204684		Heat Exchanger		Appelez-nous	-
29	3203857		Evaporator Assembly-includes Heat Exch		Appelez-nous	-
30	3204985		Thermostat-defrost		Appelez-nous	-
31	5308011209		Heater-defrost		Appelez-nous	-
32	3205110		Clip-heater		Appelez-nous	-
33	08011624		Hot Tube Repair Kit		Appelez-nous	-
34	5303211319		Tape		Appelez-nous	-
10A	G185156		Screw-bracket Mtg (2) (non-illustrated)		Appelez-nous	-
17A	08011119		Screw-timer Mtg (2) (non-illustrated)		Appelez-nous	-
18A	G185085		Screw-cover Mtg (non-illustrated)		Appelez-nous	-
1A	5303203044		Plug-short Test Hole (non-illustrated)		Appelez-nous	-
27A	3204989		Support (non-illustrated)		Appelez-nous	-
6A	08011121		Screw-control Mtg (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
