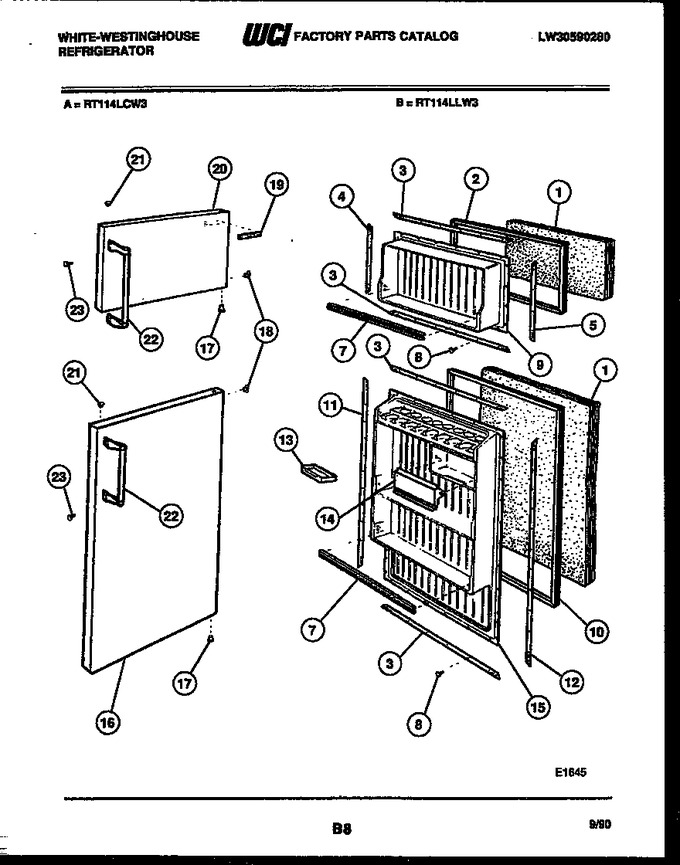

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303007739 | Insulation-door (bulk) |
|
- | |||||
| 2 | R000900798 | Gasket - Freezer Door |
|
- | |||||
| 3 | 08011191 | Retainer-top/bottom (4) |
|
- | |||||
| 4 | 08011190 | Retainer-ls |
|
- | |||||
| 5 | 08011189 | Retainer-rs |
|
- | |||||
| 7 | 5303211080 | Rack - Door (4) |
|
- | |||||
| 8 | 134178901 | Screw-8a X 1/2 (54) (Replaces: 5303211311) |
|
$ 14.89 | |||||
| 9 | G185131 | Inner Panel-freezer |
|
- | |||||
| 10 | R000900734 | Gasket - Refrigerator Door |
|
- | |||||
| 11 | 08011188 | Retainer-ls |
|
- | |||||
| 12 | 08011187 | Retainer-rs |
|
- | |||||
| 13 | F000151450 | Butter Dish |
|
- | |||||
| 14 | G185139 | Dairy Door |
|
- | |||||
| 15 | G185138 | Inner Panel - Refrigerator |
|
- | |||||
| 16 | 3204911 | Refrigerator Door - White |
|
- | |||||
| 17 | G185123 | Bearing-hinge (8) |
|
- | |||||
| 18 | 240494001 | Plug-white (8) (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 19 | 5303211312 | Nameplate |
|
- | |||||
| 20 | 5303211313 | Freezer Door - White |
|
- | |||||
| 21 | 5308000134 | Plug-white (2) |
|
$ 5.62 | |||||
| 22 | 3205084 | Handle Assembly |
|
- | |||||
| 23 | 5308011745 | Screw |
|
$ 10.38 |
