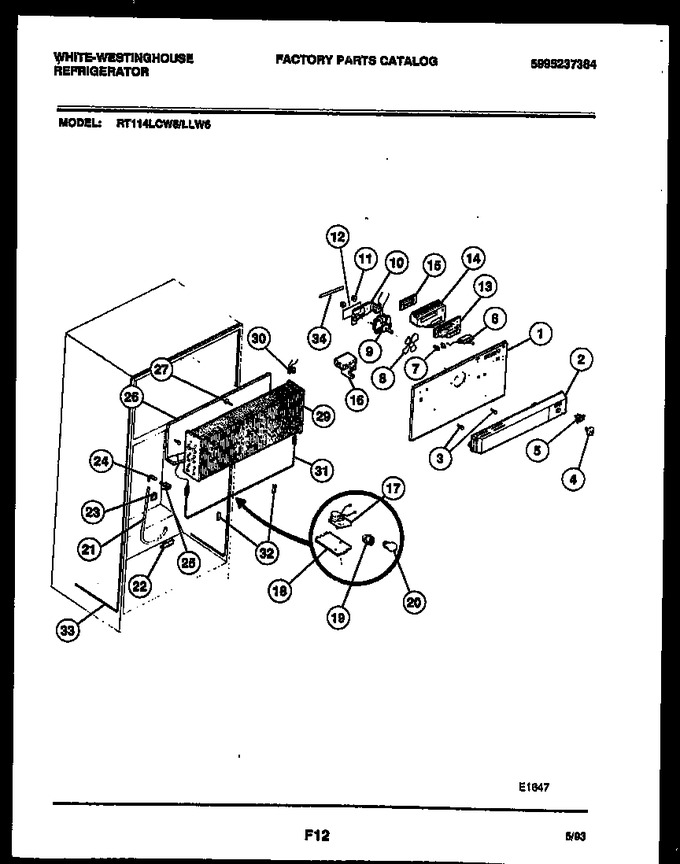

02 - Door Parts
03 - Cabinet Parts
04 - Inner Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303211321 | Cover-evap Coil |
|
- | |||||
| 2 | 3205111 | Cover-fan |
|
- | |||||
| 3 | 08011122 | Screw-cover Mtg (4) |
|
- | |||||
| 4 | 5303211327 | Knob-temp Control |
|
- | |||||
| 5 | 3204943 | Switch-power Miser |
|
- | |||||
| 6 | 5303211156 | Control-temperature |
|
$ 312.64 | |||||
| 7 | 08011134 | Grommet (2) |
|
- | |||||
| 8 | 5308011156 | Fan Blade |
|
- | |||||
| 9 | 5308011165 | Motor-fan |
|
- | |||||
| 10 | 5303211320 | Bracket - Motor Mtg |
|
- | |||||
| 11 | 08011129 | Nut-keps (2) |
|
- | |||||
| 12 | 5303211318 | Rear Support Motor |
|
- | |||||
| 13 | 08011203 | Gasket |
|
- | |||||
| 14 | 08011220 | Spacer |
|
- | |||||
| 15 | 08011153 | Gasket |
|
- | |||||
| 16 | 08011205 | Spacer |
|
- | |||||
| 17 | 5303211155 | Timer-defrost |
|
- | |||||
| 18 | 08011178 | Cover-timer |
|
- | |||||
| 19 | 08011171 | Light Socket |
|
- | |||||
| 20 | 3201908 | Light Bulb |
|
- | |||||
| 21 | 30011704 | Drain Hose |
|
- | |||||
| 22 | 08011157 | Bracket-hose |
|
- | |||||
| 23 | 5303211317 | Retainer-hose |
|
- | |||||
| 24 | 3001706 | Elbow-hose |
|
- | |||||
| 25 | 08011170 | Drain Cup |
|
- | |||||
| 26 | 08011216 | Drain Tough |
|
- | |||||
| 27 | 08011136 | Support-coil Cover (2) |
|
- | |||||
| 29 | 5303298528 | Evaporator Assembly - Includes Heat Exch. |
|
- | |||||
| 30 | 3204985 | Thermostat-defrost |
|
- | |||||
| 31 | 5308011209 | Heater-defrost |
|
- | |||||
| 32 | 3205110 | Clip-heater |
|
- | |||||
| 33 | 08011624 | Hot Tube Repair Kit |
|
- | |||||
| 34 | 5303211319 | Tape |
|
- | |||||
| 10A | G185156 | Screw-bracket Mtg (2) (non-illustrated) |
|
- | |||||
| 17A | 08011119 | Screw-timer Mtg (2) (non-illustrated) |
|
- | |||||
| 18A | G185085 | Screw-cover Mtg (non-illustrated) |
|
- | |||||
| 1A | 5303208309 | Plug-short Test Hole (non-illustrated) |
|
$ 45.50 | |||||
| 27A | 3204989 | Support (non-illustrated) |
|
- | |||||
| 6A | 08011121 | Screw-control Mtg (2) (non-illustrated) |
|
- |
