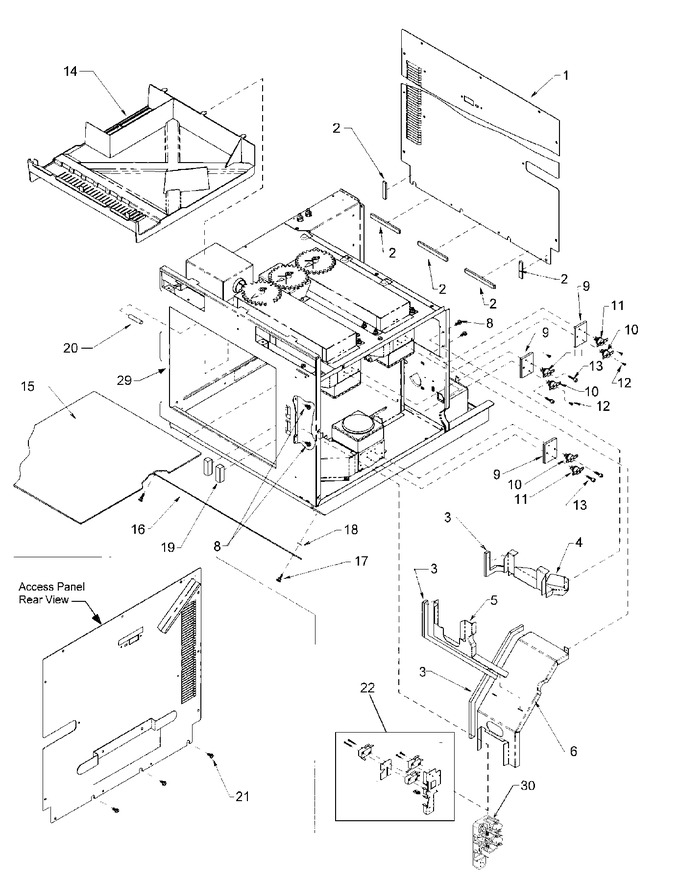

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | R0156970 | Access Panel Weld-e Ct (includ |
|
- | |||||
| 002 | A3030301 | Gasket |
|
- | |||||
| 003 | A3030330 | Gasket |
|
- | |||||
| 004 | R0156986 | Divider-rear Flow |
|
- | |||||
| 005 | R0156988 | Divider-top Flow |
|
- | |||||
| 006 | R0156987 | Divider-bot Flow |
|
- | |||||
| 008 | WP489349 | Screw-sm (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 009 | B8380601 | Plate-tc Mtg |
|
- | |||||
| 010 | B5684106 | Cutout-thermal, Magnetron |
|
- | |||||
| 011 | B5684118 | Cutout-thermal, Control |
|
- | |||||
| 012 | M0232012 | Screw-tc |
|
- | |||||
| 013 | M0229916 | Screw T.c |
|
- | |||||
| 014 | 10766601 | Shield, Grease |
|
- | |||||
| 015 | R0156942 | Tray-oven |
|
$ 184.87 | |||||
| 016 | 10853102 | Grille, Air Inlet |
|
- | |||||
| 017 | M0209701 | Screw, Decorative |
|
- | |||||
| 018 | M0274066 | Washer, Nylon |
|
- | |||||
| 019 | 3010003001 | Standoff-poly |
|
- | |||||
| 020 | M0308801 | Cap-screw |
|
- | |||||
| 021 | WP90767 | Screw-sm (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 030 | 12360506 | Switch, Interlock |
|
- |
