01 - Freezer Compartment


02 - Freezer Inner Door


03 - Fresh Food Compartment


04 - Fresh Food Inner Door


05 - Ice & Water Dispenser


06 - Ice Crusher & Bin


07 - Ice Maker


08 - Shelves & Accessories


09 - Unit Compartment & System


10 - Wiring Information

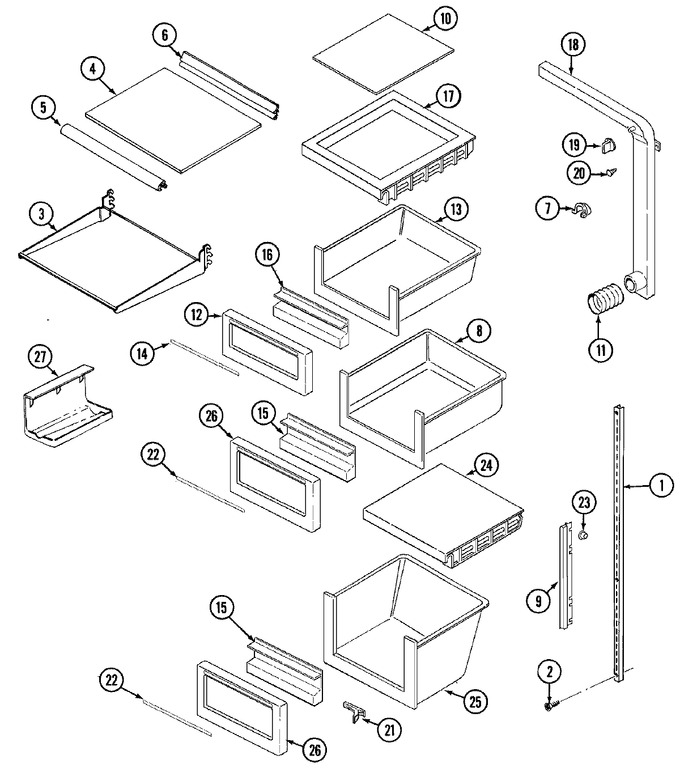

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67311-1		Rail, Shelf Support	11	Appelez-nous	-
2	400037-28		Screw	11	Appelez-nous	-
3	70106-7		Frame, Shelf	11	Appelez-nous	-
4	68139-22		Glass, Cantilever Shelf	11	Appelez-nous	-
5	70107-21		Trim, Shelf (front)	11	Appelez-nous	-
6	70110-5		Trim, Shelf (rear)	11	Appelez-nous	-
7	68391-1		Cover, Air Inlet	11	Appelez-nous	-
8	69652-1		Pan, Crisper	11	Appelez-nous	-
9	69850-1		Gasket	11	Appelez-nous	-
10	69646-3		Glass, Meat Shelf	11	Appelez-nous	-
11	68282-1		Bellows, Air Tunnel	11	Appelez-nous	-
12	69648-2		Front, Meat Pan	11	Appelez-nous	-
13	69647-1		Pan, Meat	11	Appelez-nous	-
14	69666-6		Insert, Pan Front	11	Appelez-nous	-
15	69656-1		Handle, Crisper	11	Appelez-nous	-
16	69649-1		Handle	11	Appelez-nous	-
17	69645-1		Shelf, Meat Pan	11	Appelez-nous	-
18	69640-1		Tunnel, Air	11	Appelez-nous	-
19	68755-2		Knob, Air Tunnel	11	Appelez-nous	-
20	28013-2		Rivet, Air Tunnel	11	Appelez-nous	-
21	69657-2		Slide, Control	11	Appelez-nous	-
22	69666-5		Insert, Pan Front	11	Appelez-nous	-
23	67764-1		Support, Crisper Shelf	11			$ 8.05
23	WP489478		Screw   (Replaces: 400017-1)	11			$ 6.98
24	69653-1		Shelf, Crisper	11	Appelez-nous	-
24	69651-1		Shelf, Crisper	11	Appelez-nous	-
25	69654-1		Pan, Crisper (lower)	11	Appelez-nous	-
26	69655-2		Front, Crisper	11	Appelez-nous	-
27	69615-1		Holder, Beverage	11	Appelez-nous	-
