SELECT A DIAGRAM

01 - Outercase


02 - Door


03 - Blower


04 - Control


05 - Electrical Components


06 - Cavity


07 - Cavity


08 - Supplemental Information


09 - Wiring Information

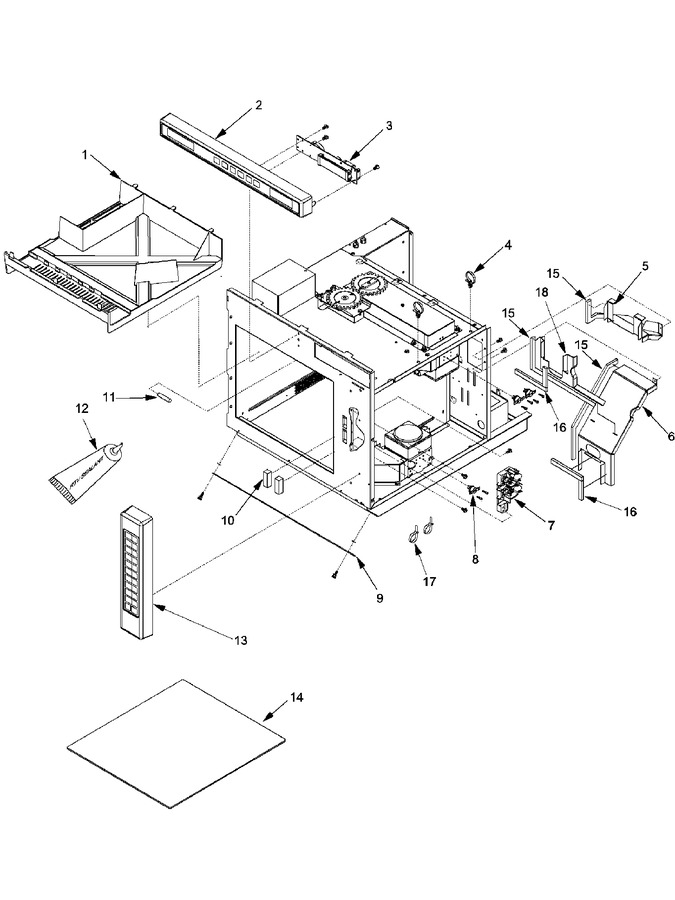

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	10766601		Shield, Grease		Appelez-nous	-
002	M0231717		Screw, Tf		Appelez-nous	-
002	R0130108		Touch Panel(top)		Appelez-nous	-
003	12502401		Board,display Xxx		Appelez-nous	-
003	M0234114		Screw		Appelez-nous	-
004	M0322202		Tie Wire		Appelez-nous	-
005	R0156986		Rear Divider Duct-w/gasket		Appelez-nous	-
006	R0156987		Bottom Divider Duct-w/gasket		Appelez-nous	-
007	12360506		Switch, Interlock		Appelez-nous	-
007	59001114		Switch, Interlock		Appelez-nous	-
008	B5684124		Cutout-thermal Magnetron		Appelez-nous	-
008	M0229916		Screw T.c		Appelez-nous	-
009	10853102		Grille, Air Inlet		Appelez-nous	-
009	M0209701		Screw, Decorative		Appelez-nous	-
009	M0274066		Washer, Nylon		Appelez-nous	-
010	3010003001		Support-tray		Appelez-nous	-
011	M0308801		Cap, Protective-threaded (red)		Appelez-nous	-
012	W10841140		Sealer   (Replaces: M0275598)			Immediately	$ 24.92
013	59001139		Label, Rc30s		Appelez-nous	-
013	R0000279		Assy, Touch Panel-side		Appelez-nous	-
014	R0156942		Tray-ceramic Floor W/sealer Includes Items 12 & 10				$ 184.87
015	A3030330		Gasket,per Ft		Appelez-nous	-
016	A3030303		Gasket (per Foot)		Appelez-nous	-
017	M0321210		Tie, Elec		Appelez-nous	-
018	R0156988		Top Divider Duct-w/gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
