SELECT A DIAGRAM

01 - Body

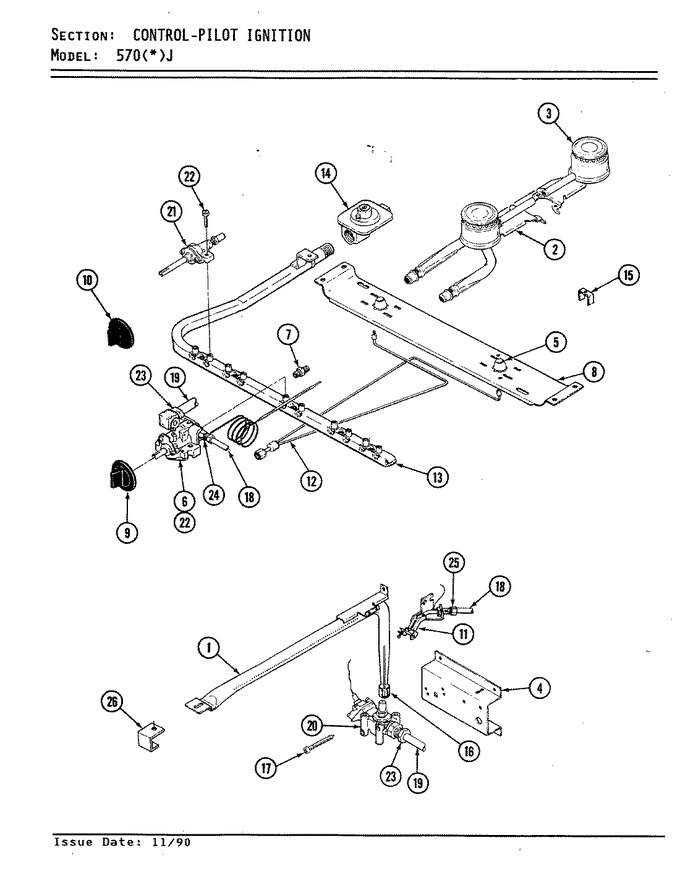

02 - Control System (pilot Ignition)


03 - Control System (solid State Ignition)


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3403A005-45		Burner Oven Assy	1	Appelez-nous	-
2	7505P173-60		Burner, Top (frt)	1	Appelez-nous	-
3	7505P172-60		Burner, Top (rear)	1	Appelez-nous	-
4	3807F369-45		Support, Oven Valve	1	Appelez-nous	-
5	8030P001-60		Cone, Top Lighter----na	1	Appelez-nous	-
6	7515P030-60		Thermostat	4	Appelez-nous	-
6	7101P043-60		Screw, Control Valve	1	Appelez-nous	-
6	7515P028-60		Thermostat	1	Appelez-nous	-
6	7101P295-60		Screw	4	Appelez-nous	-
7	7507P032-60		Filter, Top Lighter	1	Appelez-nous	-
8	3807F353-80		Support, Top Burner	1	Appelez-nous	-
9	7711P394-60		Dial, Oven Control	1	Appelez-nous	-
10	7733P015-60		Knob, Valve	1	Appelez-nous	-
11	Y0L01002199		Lighter Ov. Br.	1	Appelez-nous	-
12	7432P049-60		Lighter, Top Burner	1	Appelez-nous	-
13	7513P099-60		Pipe Manifold	1	Appelez-nous	-
13	7103P106-60		Nut	1	Appelez-nous	-
13	7513P128-60		Pipe, Manifold	4	Appelez-nous	-
14	7510P022-60		Regulator Pressure	1	Appelez-nous	-
15	3604F122-51		Shield Top Lighter	1	Appelez-nous	-
16	3411F006-34		Mixer Air Oven Burner	1	Appelez-nous	-
17	WP7101P062-60		Screw No.10 X 2   (Replaces: 7101P062-60)	1			$ 7.24
18	3414F013-44		Tubing, Cntrl/pilo (3/16``)	1	Appelez-nous	-
19	3414F044-44		Tubing, 3/8	1	Appelez-nous	-
20	7501P053-60		Valve, Oven	1	Appelez-nous	-
20	7501P068-60		Valve, Oven	4	Appelez-nous	-
21	7502P167-60		Valve, Burner	4	Appelez-nous	-
21	7502P127-60		Valve, Top Burner	1	Appelez-nous	-
22	7101P043-60		Screw, Control Valve	1	Appelez-nous	-
22	7101P296-60		Screw	4	Appelez-nous	-
23	1555251		Nut, Loxit (3/8``)	1	Appelez-nous	-
24	1555222		Nut, Loxit (3/16``)	1	Appelez-nous	-
25	1555261K		Nut & Ferrule (3/16``)	1	Appelez-nous	-
26	3807F336-51		Support, Burner	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
