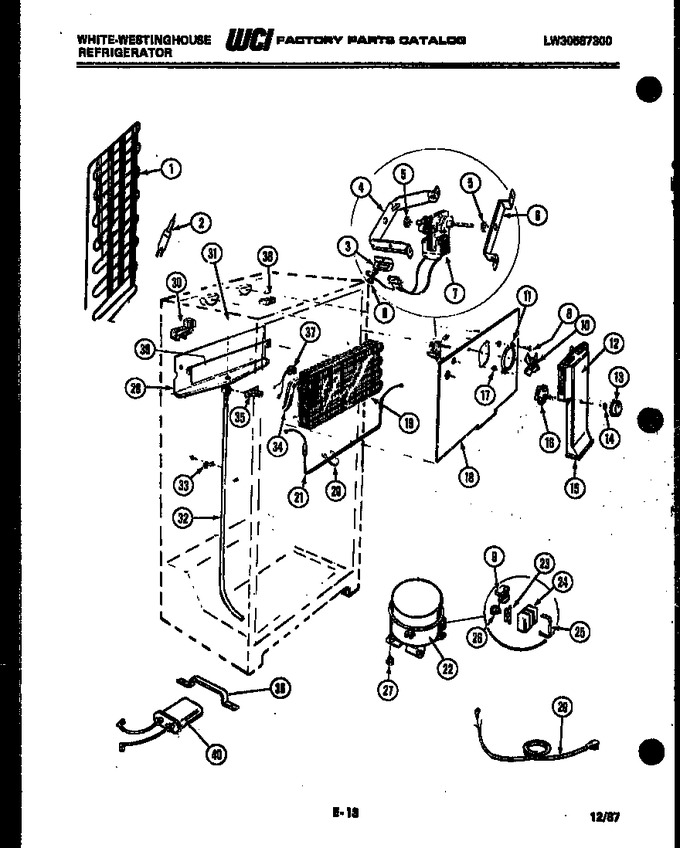

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G164924		Condenser		Appelez-nous	-
2	G186717		Drier		Appelez-nous	-
3	G164571		Bracket		Appelez-nous	-
4	G185303		Bracket-mtr Rear		Appelez-nous	-
5	G157666		Bushing (2)		Appelez-nous	-
6	G185302		Brkt-mtr Frnt		Appelez-nous	-
7	G158289		Motor		Appelez-nous	-
8	G144049		Screw		Appelez-nous	-
9	G182225-18		Relay		Appelez-nous	-
10	G174705		Blade Fan		Appelez-nous	-
11	G167217		Ring-orifice		Appelez-nous	-
12	3016523		Label-fan Cvr		Appelez-nous	-
13	G162663-15		Knob Damper		Appelez-nous	-
14	G162662		Clip		Appelez-nous	-
15	3016524		Cover-fan		Appelez-nous	-
16	G162661		Damper		Appelez-nous	-
17	G167542		Nut-speed (2)		Appelez-nous	-
18	G163214		Cover-coil		Appelez-nous	-
19	G162297		Evaporator		Appelez-nous	-
20	G165546		Strap (2)		Appelez-nous	-
21	G162432-02		Heater-defrost		Appelez-nous	-
22	G190360		Compressor		Appelez-nous	-
23	G188957		Retainer		Appelez-nous	-
24	G166056		Cover-term.		Appelez-nous	-
25	G166057		Clamp-bale		Appelez-nous	-
26	G188877		Overload		Appelez-nous	-
27	G177617		Grommet (4)		Appelez-nous	-
28	G163216		Trough-drain		Appelez-nous	-
29	G162549-01		Service Cord		Appelez-nous	-
30	G188375		Block-evap Lh		Appelez-nous	-
31	G101620		Tube		Appelez-nous	-
32	G163205		Tube-drain		Appelez-nous	-
33	G168979		Clamp		Appelez-nous	-
34	G149013		Heat Exchanger		Appelez-nous	-
35	G162179		Cup		Appelez-nous	-
36	G188897		Strap-capacitor		Appelez-nous	-
37	G162690-01		Thermos-heater		Appelez-nous	-
38	G185276		Block-evap R.h.		Appelez-nous	-
39	G169024-01		Insulator		Appelez-nous	-
40	G188885-01		Capacitor		Appelez-nous	-
38A	G189377		Heat Exch Rep Kit (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
