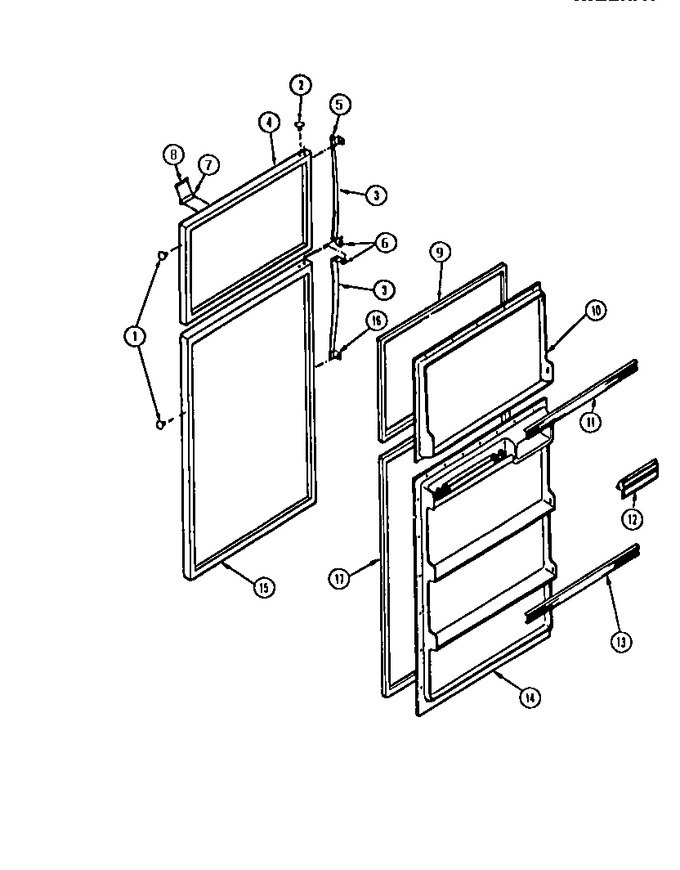

SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G162977-08		Button Plug-avocado		Appelez-nous	-
2	G169332-08		Button Plug-avocado		Appelez-nous	-
3	G170495-23		Grip, Handle		Appelez-nous	-
4	G171460-08		Panel, Outer, Avocado		Appelez-nous	-
5	G179800		End-handle		Appelez-nous	-
6	G187329-01		End, Handle		Appelez-nous	-
7	G175117-02		Nameplate		Appelez-nous	-
8	G188378-01		Label, Nameplate		Appelez-nous	-
9	G186932-05		Gasket		Appelez-nous	-
10	G165702-02		Panel, Inner		Appelez-nous	-
11	G164698-28		Rack, Door		Appelez-nous	-
12	G163222-35		Door, Butter		Appelez-nous	-
13	G164698-27		Rack, Door (2)		Appelez-nous	-
14	G165701-02		Panel, Inner		Appelez-nous	-
15	G171459-08		Panel, Outer, Avocado		Appelez-nous	-
16	G179801		End-handle		Appelez-nous	-
17	G186932-04		Gasket		Appelez-nous	-
*75481	G168981-08		Kit, Door Conversion, Avocado		Appelez-nous	-
10A	G162585		Screw		Appelez-nous	-
15A	G183138		Bearing Hinge (non-illustrated)		Appelez-nous	-
16A	G185566		Screw		Appelez-nous	-
4A	G183138		Bearing, Hinge (2) (non-illustrated)		Appelez-nous	-
5A	G185566		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
