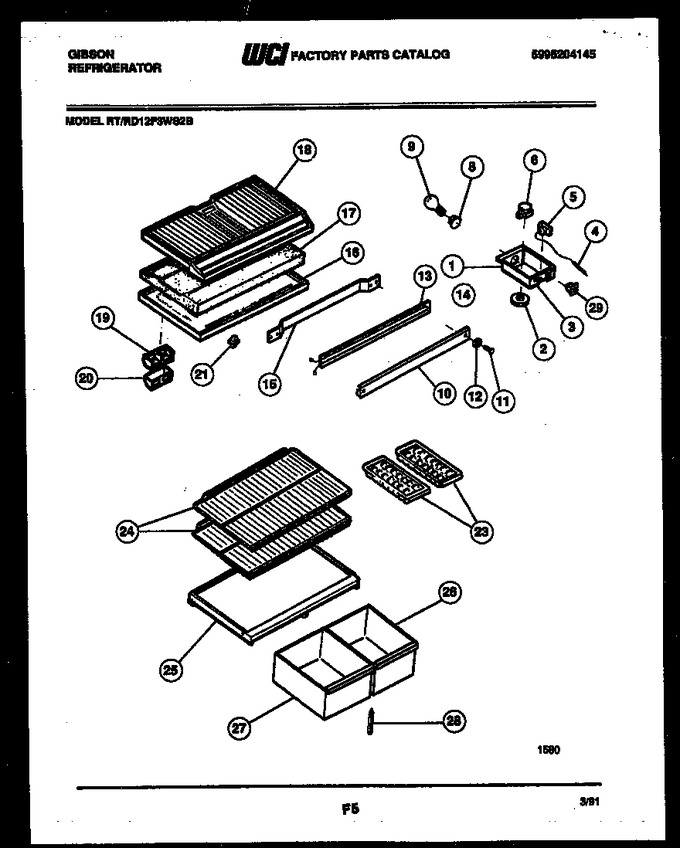

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308009730		Control Box		Appelez-nous	-
2	08006978		Knob-temp Control		Appelez-nous	-
3	G186126		Label-control Box		Appelez-nous	-
4	5303916855		Sleeve-plastic				$ 60.96
5	5308015762		Control, Temperature		Appelez-nous	-
6	215846602		Timer-defrost   (Replaces: 5300187484)			Immediately	$ 28.20
8	5308000129		Light Socket				$ 62.16
9	5303001179		Light Bulb		Appelez-nous	-
10	5303200465		Mullion, White		Appelez-nous	-
10	3916133		Mullion, Coffee		Appelez-nous	-
10	3916132		Mullion, Wheat		Appelez-nous	-
10	3916135		Mullion-avocado		Appelez-nous	-
10	5303916134		Mullion, Almond		Appelez-nous	-
11	5308012258		Screw				$ 2.25
12	5308003607		Washer, No. 10 Steel (2)				$ 1.00
13	3201662		Heater-mullion		Appelez-nous	-
14	3001370		Spacer, Mullion (2)		Appelez-nous	-
15	5308003604		Strap, Mullion Mtg		Appelez-nous	-
16	5303015448		Top Panel-refr, W/ Snap Bushing		Appelez-nous	-
17	5308000759		Divider, Styrofoam		Appelez-nous	-
18	5308000748		Bottom Panel, Frzr		Appelez-nous	-
19	5308000071		Air Deflector		Appelez-nous	-
20	5303001546		Cover, Deflector		Appelez-nous	-
21	5309918806		Light Switch			Immediately	$ 21.97
23	5303001324		Ice Cube Tray (2)		Appelez-nous	-
24	G172174-02		Shelf-refr (2)		Appelez-nous	-
25	5316295701		Cover-pan		Appelez-nous	-
26	G164326-58		Pan-crisper-rh		Appelez-nous	-
27	G164326-57		Pan-crisper-lh		Appelez-nous	-
28	5303206506		Support-pan Cover Adj		Appelez-nous	-
29	5303200998		Slide Switch-energy Saver		Appelez-nous	-
16A	5303001380		Screw		Appelez-nous	-
17A	3019094		Wiring Harness-divider (non-illustrated)		Appelez-nous	-
1A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
5A	5303001260		Screw				$ 6.73
6A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
