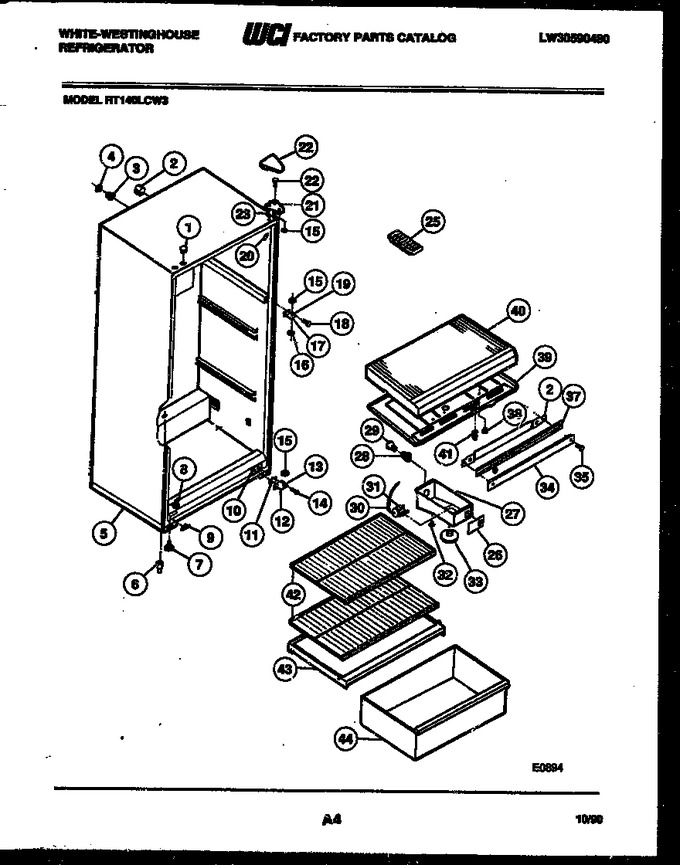

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001678		Plug, Wheat (2)		Appelez-nous	-
2	5303001198		Tube-rubber		Appelez-nous	-
3	5303001286		Ferrule-inner		Appelez-nous	-
4	5303001287		Ferrule-outer		Appelez-nous	-
5	5303006086		Cabinet Base		Appelez-nous	-
6	5303001386		Drain Tube		Appelez-nous	-
7	5303205540		Leveling Screw (2)		Appelez-nous	-
8	5308003584		Anchor Nut (2)				$ 7.30
9	5303001478		Plug, Hinge Hole		Appelez-nous	-
10	5308012296		Tapping-plate (2)				$ 47.44
11	5303001323		Shim, Bottom Hinge		Appelez-nous	-
12	5308010251		Bracket-btm Hinge		Appelez-nous	-
13	5303001321		Pin, Bottom Hinge				$ 17.25
14	5303001320		Screw-hinge Mtg (2)		Appelez-nous	-
15	5308000007		Washer-1/4 Nylon (3)		Appelez-nous	-
16	5303001038		Washer-5/16 Nylon (2)				$ 13.34
17	5308000184		Pin-center Hinge				$ 8.87
18	5308012258		Screw				$ 2.25
19	5303001369		Bracket- Center Hinge		Appelez-nous	-
20	5308003617		Corner Trim-wheat		Appelez-nous	-
21	5308012843		Hinge-top				$ 71.47
22	241710601		Screw   (Replaces: 5303001479)				$ 13.46
23	5303001037		Shim, Top Hinge				$ 12.39
24	5303001665		Hinge Cover, Wheat		Appelez-nous	-
25	5303001324		Ice Tray (2)		Appelez-nous	-
26	G000180105		Label - Control Box		Appelez-nous	-
27	5317672201		Control Box		Appelez-nous	-
28	5308000129		Light Socket				$ 62.16
29	5303001179		Light Bulb		Appelez-nous	-
30	5308037932		Sleeve, Plastic		Appelez-nous	-
31	5308006984		Control-temperature		Appelez-nous	-
32	3202734		Plug-control Box		Appelez-nous	-
33	5308010011		Knob-temperature Cntrl		Appelez-nous	-
34	3916132		Mullion, Wheat		Appelez-nous	-
35	5308012258		Screw				$ 2.25
36	5308017408		Heater-mullion		Appelez-nous	-
37	5308003604		Strap, Mullion Mtg		Appelez-nous	-
38	5303001380		Screw		Appelez-nous	-
39	3016980		Top Panel-refr		Appelez-nous	-
40	5308000986		Divider-styrofoam		Appelez-nous	-
41	5309918806		Light Switch			Immediately	$ 21.97
42	53127217303		Shelf-sliding (3)		Appelez-nous	-
43	5308000749		Cover-storage Pan		Appelez-nous	-
44	5316297334		Pan-storage		Appelez-nous	-
27A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
31A	5303001670		Switch-energy Saver (non-illustrated)		Appelez-nous	-
31B	5303001260		Screw				$ 6.73
35A	5308003607		Washer-no. 10 Steel (2) (non-illustrated)				$ 1.00
35B	3001370		Spacer Mullion (2) (non-illustrated)		Appelez-nous	-
