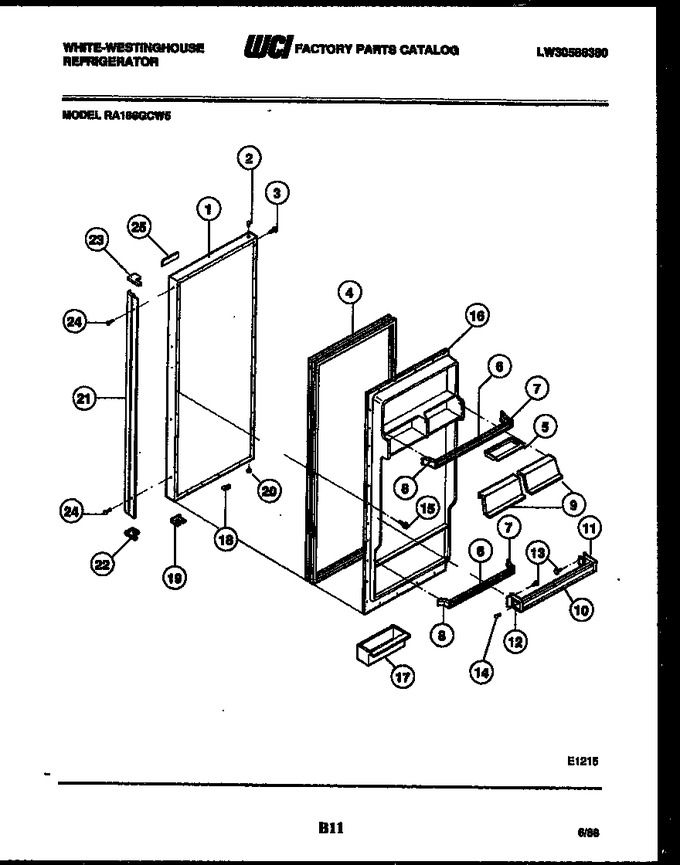

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186932-03		Gasket, Freezer Door		Appelez-nous	-
2	G186932-02		Gasket-refrigerator Door		Appelez-nous	-
3	G180228-01		Inner Panel-refrigerator		Appelez-nous	-
4	G163316-66		Door Rack-refrigerator (2)		Appelez-nous	-
5	G161079		Butter Dish		Appelez-nous	-
6	G161776-33		Butter Door		Appelez-nous	-
7	G163316-65		Door Rack-frzr		Appelez-nous	-
8	G180230-01		Inner Panel-freezer		Appelez-nous	-
9	G169332-08		Button Plug-avocado		Appelez-nous	-
10	G191882-08		Freezer Door-avocado		Appelez-nous	-
11	G176986		Nameplate-frame		Appelez-nous	-
12	G177218-02		Label-nameplate		Appelez-nous	-
13	G183138		Hinge Bearing (8)		Appelez-nous	-
14	G162977-08		Button Plug-avocado		Appelez-nous	-
15	G191885-08		Refr Door-avocado		Appelez-nous	-
16	G175810		Handle-end Bottom		Appelez-nous	-
17	G175666-09		Handle-grip (2)		Appelez-nous	-
18	G187329-01		Handle End (2)		Appelez-nous	-
19	G175809		Handle-end Top		Appelez-nous	-
20	G185566		Screw		Appelez-nous	-
*16889	G89643		Insulation-door (bulk)		Appelez-nous	-
11A	G153407-12		Tape-nameplate Mounting (non-illustrated)		Appelez-nous	-
3A	G162585		Screw		Appelez-nous	-
8A	G162585		Screw		Appelez-nous	-
