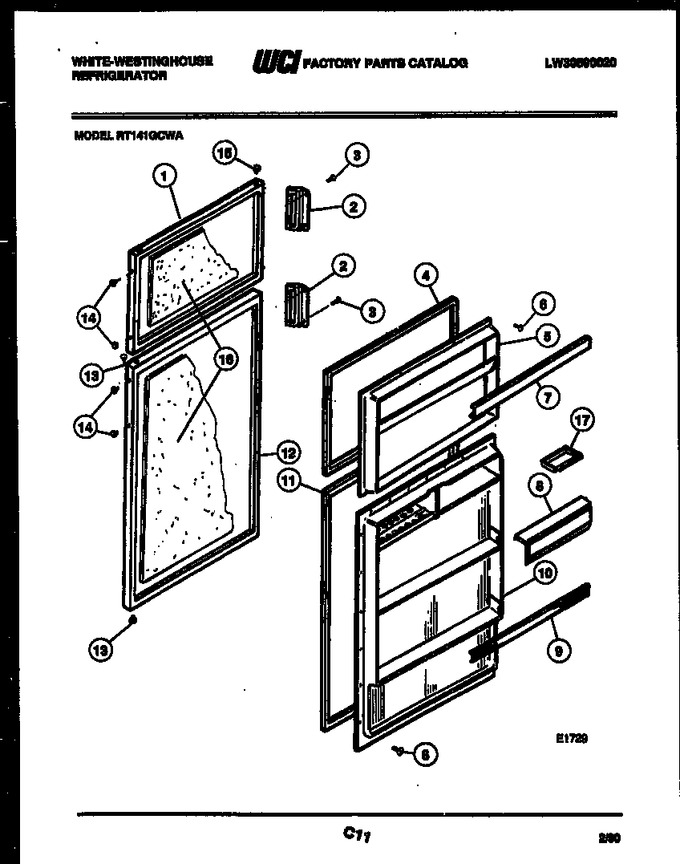

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303916726 | Freezer Door-wheat |
|
- | |||||
| 2 | 3016494 | Handle-wheat |
|
- | |||||
| 3 | 5308013645 | Screw, Handle Mtg (4) |
|
- | |||||
| 4 | 5303001399 | Gasket-freezer |
|
- | |||||
| 5 | 5318023001 | Inner Panel-freezer |
|
- | |||||
| 6 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 7 | 5303208992 | Door Rack-freezer |
|
- | |||||
| 8 | 5316177633 | Dairy Door |
|
- | |||||
| 9 | G163316-39 | Door Rack-refr (2) |
|
- | |||||
| 10 | 5318022801 | Inner Panel-refr |
|
- | |||||
| 11 | 5303001398 | Gasket-refrigerator |
|
- | |||||
| 12 | 5303916731 | Refrigerator Door-wheat |
|
- | |||||
| 13 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 14 | 5308000180 | Plug-wheat (4) |
|
- | |||||
| 15 | 5308000176 | Plug-wheat (2) |
|
- | |||||
| 16 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 17 | 5308000716 | Butter Dish |
|
$ 20.48 |
