New Model Search:

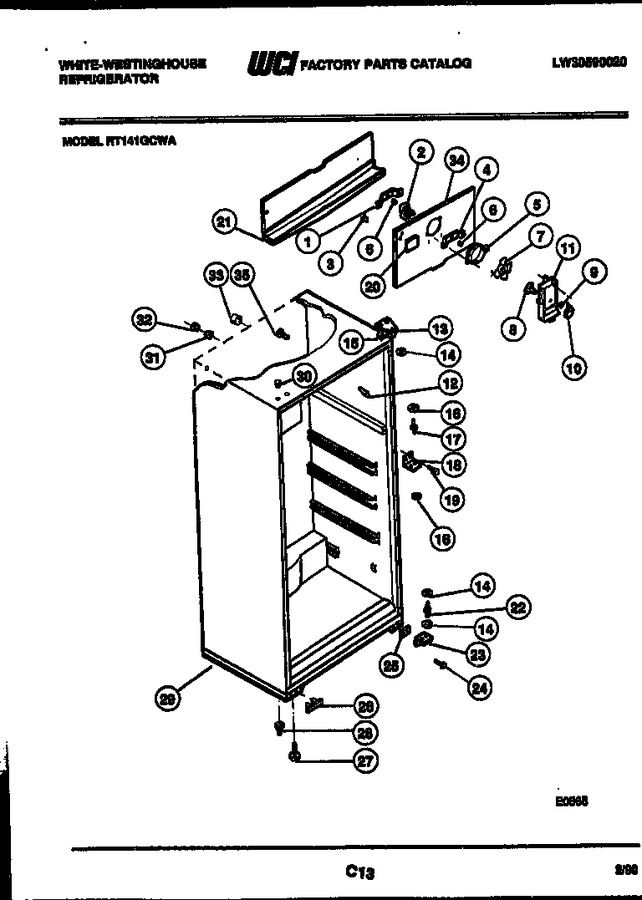

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001227 | Bracket-rear |
|
- | |||||
| 2 | 5300158289 | Fan Motor |
|
Immediately | $ 149.94 | ||||
| 3 | 5308000107 | Connector Bracket |
|
$ 33.23 | |||||
| 4 | 5303001226 | Bracket-front |
|
- | |||||
| 5 | 5308000124 | Orifice Ring |
|
$ 53.58 | |||||
| 6 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 7 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 8 | 5303001331 | Damper |
|
$ 31.71 | |||||
| 9 | 5303001028 | Push Nut - Damper |
|
- | |||||
| 10 | 5316266313 | Knob-damper Cntrl |
|
- | |||||
| 11 | 3205688 | Fan Cover |
|
- | |||||
| 12 | G162364-08 | Corner Trim-avocado |
|
- | |||||
| 13 | 5308012843 | Hinge-top |
|
$ 71.47 | |||||
| 14 | 5308000007 | Washer-hinge (3) |
|
- | |||||
| 15 | 5303001037 | Shim, Top Hinge |
|
$ 12.39 | |||||
| 16 | G164355 | Washer-cntr Hnge (2) |
|
- | |||||
| 17 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 18 | 5303001369 | Bracket- Center Hinge |
|
- | |||||
| 19 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 20 | 5308013636 | Plug, Decorative |
|
- | |||||
| 21 | 08003638 | Drain Trough |
|
- | |||||
| 22 | 5303001321 | Pin, Bottom Hinge |
|
$ 17.25 | |||||
| 23 | 5308010251 | Bracket-bttm Hinge |
|
- | |||||
| 24 | 5303001320 | Screw-hinge Mtg (2) |
|
- | |||||
| 25 | 5303001323 | Shim, Bottom Hinge |
|
- | |||||
| 26 | 5303001478 | Plug, Hinge Hole |
|
- | |||||
| 27 | 5303205540 | Leveling Screw (2) |
|
- | |||||
| 28 | 5303001386 | Drain Tube |
|
- | |||||
| 29 | 5303006086 | Cabinet Base |
|
- | |||||
| 30 | 5303001677 | Plug-hinge-avoc (2) |
|
- | |||||
| 31 | 5303001286 | Ferrule-inner |
|
- | |||||
| 32 | 5303001287 | Ferrule-outer |
|
- | |||||
| 33 | 5303001198 | Tube, Rubber (2) |
|
- | |||||
| 34 | 3001358 | Cover - Evap Coil |
|
- | |||||
| 35 | 5308000097 | Support, Coil Cover (2) |
|
- | |||||
| *25211 | 5308016571 | Plug-liner (8) |
|
$ 4.79 | |||||
| 11A | G176893 | Label-fan Cover |
|
- | |||||
| 11B | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 13A | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 13B | 5308012296 | Tapping Plate (2) (non-illustrated) |
|
$ 47.44 | |||||
| 24A | 5308012296 | Tapping Plate (2) (non-illustrated) |
|
$ 47.44 | |||||
| 27A | 5308003584 | Anchor Nut-screw (2) (non-illustrated) |
|
$ 7.30 | |||||
| 34A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 34B | 5308000126 | Nut-``u`` Type (2) |
|
- | |||||
| 34C | 5303203044 | Plug-short Test Hole (non-illustrated) |
|
- | |||||
| 3A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 5A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 |
