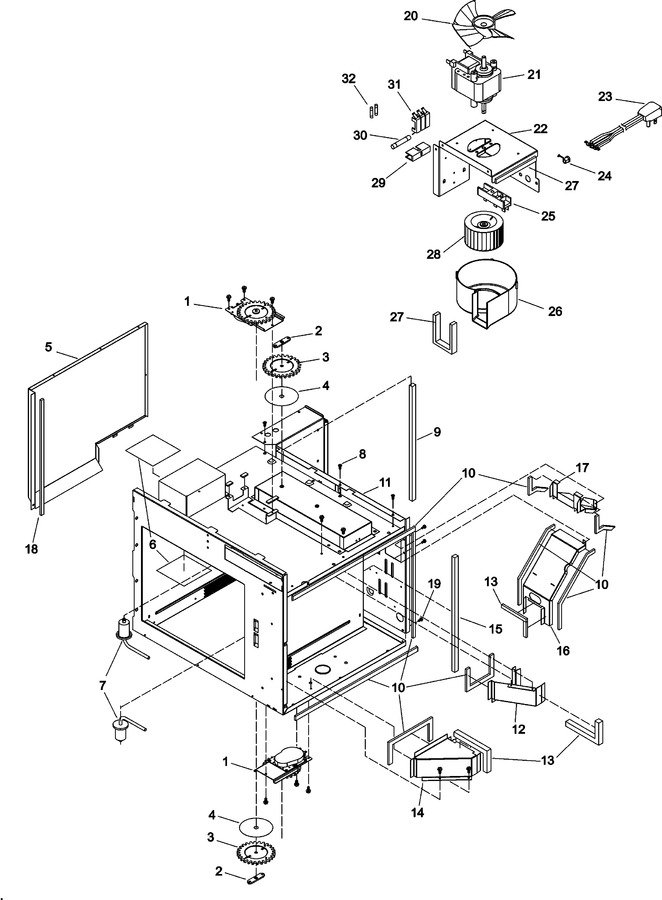

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	M0231717		Screw, Tf		Appelez-nous	-
001	R0130263		Motor-antenna Stirrer (230v) Includes Gear, Retainer, Plate				$ 87.98
002	12570201		Retainer,gear Shaft		Appelez-nous	-
003	12570101		Gear,spur--++xxx		Appelez-nous	-
004	10903002		Washer, Spur Gear				$ 5.44
005	10781901		Duct, Exhaust		Appelez-nous	-
006	B8367701		Window, Oven Light		Appelez-nous	-
007	R0130262		Antenna (stirrer)				$ 79.65
008	YM0200316		Screw		Appelez-nous	-
009	10966601		Gasket, Neoprene		Appelez-nous	-
010	A3030330		Gasket,per Ft		Appelez-nous	-
011	59001204		Panel, Partition		Appelez-nous	-
012	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
012	R0156984		Top Exhaust Duct-w/gasket		Appelez-nous	-
013	A3030303		Gasket (per Foot)		Appelez-nous	-
014	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
014	R0156985		Bottom Exhaust Duct-w/gasket		Appelez-nous	-
015	A3030311		Gasket-per Inch		Appelez-nous	-
016	R0156987		Bottom Divider Duct-w/gasket		Appelez-nous	-
017	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
017	R0156986		Rear Divider Duct-w/gasket		Appelez-nous	-
018	A3030301		Gasket (inch)		Appelez-nous	-
019	5078-CC		Screw		Appelez-nous	-
020	B5706704		Fan Blade				$ 8.23
021	59001482		Motor, Blower		Appelez-nous	-
022	59001483		Bracket,blower		Appelez-nous	-
022	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
023	59001499		Cord-power		Appelez-nous	-
023	59001655		Power Cord		Appelez-nous	-
024	M0370009		Relief- Strain		Appelez-nous	-
025	B5677203		Terminal Block		Appelez-nous	-
025	M0234117		Screw		Appelez-nous	-
026	12552001		Scroll,blower				$ 13.02
026	M0216517		Screw		Appelez-nous	-
027	A3030303		Gasket (per Foot)		Appelez-nous	-
028	C3670809		Wheel, Blower				$ 33.54
029	10091101		Fuse Holder		Appelez-nous	-
030	M0805205		Fuse- 30a				$ 10.08
031	12136502		Block-3 Pole Fuse		Appelez-nous	-
031	M0234117		Screw		Appelez-nous	-
032	WPM0805102		Fuse 15 Amp   (Replaces: M0805102)				$ 21.25
