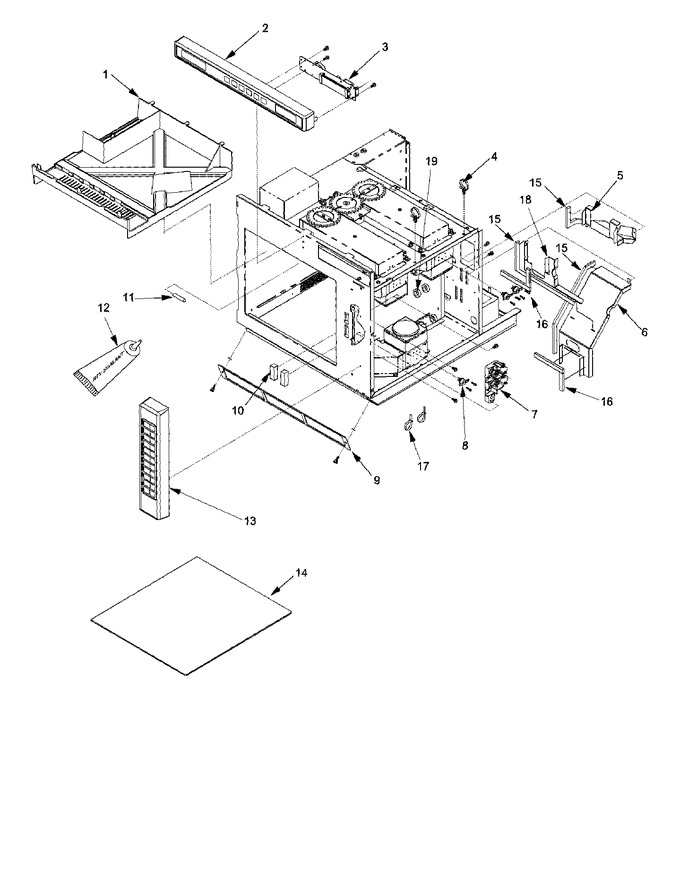

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 10766601 | Shield, Grease |
|
- | |||||
| 002 | M0231717 | Screw, Tf |
|
- | |||||
| 002 | R0130110 | Touch Panel(top) |
|
$ 239.25 | |||||
| 002 | R0131508 | Touch Panel(top) |
|
- | |||||
| 003 | 12502401 | Board,display Xxx |
|
- | |||||
| 003 | M0234114 | Screw |
|
- | |||||
| 004 | M0322202 | Tie Wire |
|
- | |||||
| 005 | R0156986 | Rear Divider Duct-w/gasket |
|
- | |||||
| 006 | R0156987 | Bottom Divider Duct-w/gasket |
|
- | |||||
| 007 | 59001154 | Switch, Interlock |
|
- | |||||
| 008 | 59001211 | Thermal Cut-off |
|
- | |||||
| 008 | B5684124 | Cutout-thermal Magnetron |
|
- | |||||
| 008 | M0229916 | Screw T.c |
|
- | |||||
| 009 | 10853102 | Grille, Air Inlet |
|
- | |||||
| 009 | M0209701 | Screw, Decorative |
|
- | |||||
| 009 | M0274066 | Washer, Nylon |
|
- | |||||
| 010 | 3010003001 | Support-tray |
|
- | |||||
| 011 | M0308801 | Cap, Protective-threaded (red) |
|
- | |||||
| 012 | W10841140 | Sealer (Replaces: M0275598) |
|
Immediately | $ 24.92 | ||||
| 013 | 59001485 | Label, Rc5kft |
|
- | |||||
| 013 | 59001502 | Label Rc5mcts |
|
- | |||||
| 013 | 59001503 | Label Rc5mdts |
|
- | |||||
| 013 | NLA | Label Rc5mctp |
|
- | |||||
| 013 | R0130109 | Touch Panel(side) |
|
$ 306.74 | |||||
| 014 | R0156942 | Tray-ceramic Floor W/sealer Includes Items 12 & 10 |
|
$ 184.87 | |||||
| 015 | A3030330 | Gasket,per Ft |
|
- | |||||
| 016 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 017 | M0321210 | Tie, Elec |
|
- | |||||
| 018 | R0156988 | Top Divider Duct-w/gasket |
|
- | |||||
| 019 | 44780P01 | Toroid (arc Suppressor) |
|
- |
