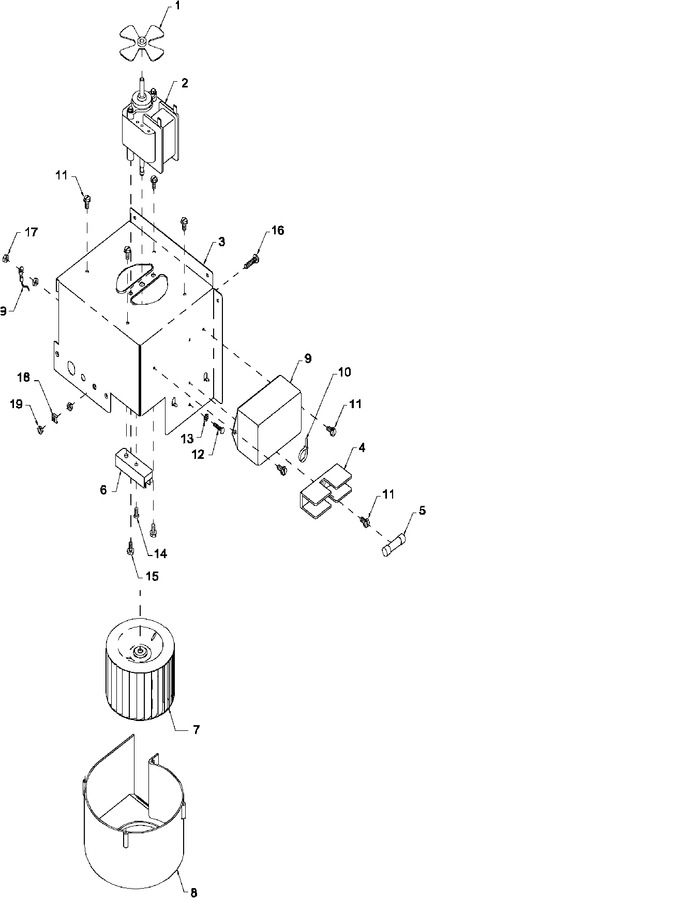

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	B5706704		Fan Blade				$ 8.23
002	59001482		Motor, Blower		Appelez-nous	-
003	59001483		Bracket,blower		Appelez-nous	-
003	59001495		Bracket, Blower		Appelez-nous	-
004	10091101		Fuse Holder		Appelez-nous	-
005	M0805205		Fuse- 30a				$ 10.08
006	B5677203		Terminal Block		Appelez-nous	-
007	C3670809		Wheel, Blower				$ 33.54
008	12552001		Scroll,blower				$ 13.02
009	59001212		Line Filter		Appelez-nous	-
010	M0321210		Tie, Elec		Appelez-nous	-
011	M0216517		Screw		Appelez-nous	-
012	NLA		Stud-self Clinch		Appelez-nous	-
013	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
014	M0234117		Screw		Appelez-nous	-
015	WP3400094		Screw   (Replaces: M0253942)				$ 7.14
016	M0293507		Stud- Sc		Appelez-nous	-
017	M0282005		Nut K				$ 7.07
018	12152201		Washer-u Type		Appelez-nous	-
019	M0282021		Nut-keps		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
