SELECT A DIAGRAM

Diagram for 01 - Blower
01 - Blower

Diagram for 02 - Cavity
02 - Cavity

Diagram for 03 - Control
03 - Control

Diagram for 04 - Door
04 - Door

Diagram for 05 - Electrical Components
05 - Electrical Components

Diagram for 06 - Interior
06 - Interior

Diagram for 07 - Outercase
07 - Outercase

Diagram for 08 - Rear Panel
08 - Rear Panel

No Diagram Image Available
09 - Supplemental Information

Diagram for 10 - Wiring Information
10 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
NI 15003202 Wiring Information Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

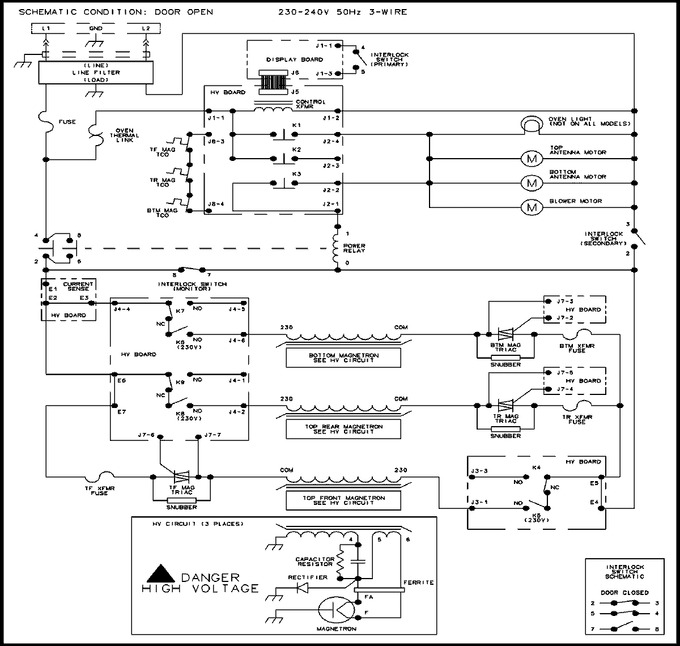

Diagram for RC5MCTS2 (BOM: P1331426M)
