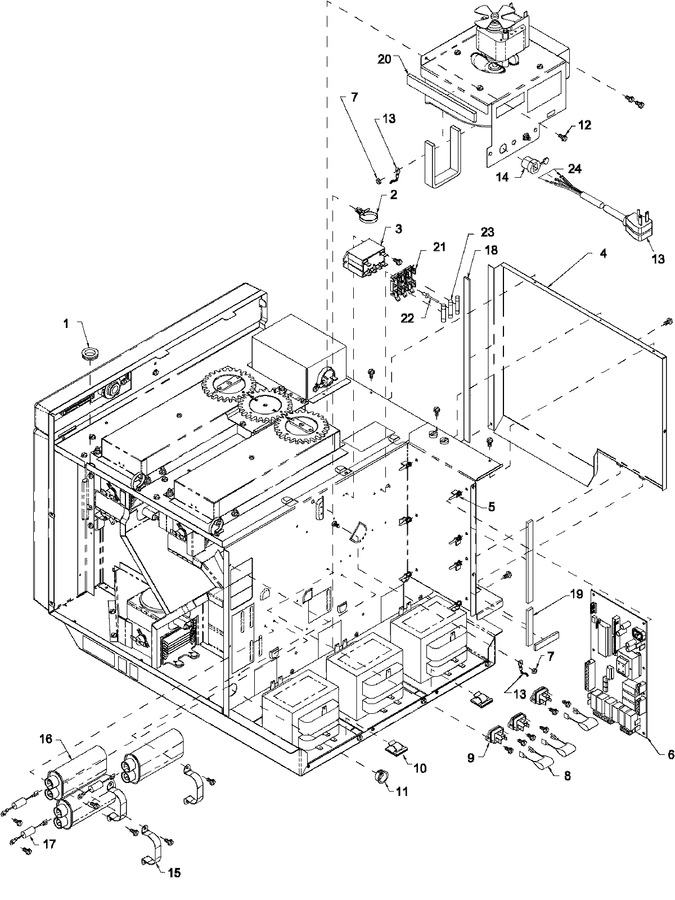

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12164101		Grommet-rubber		Appelez-nous	-
2	M0322202		Tie Wire		Appelez-nous	-
3	12492202		Relay		Appelez-nous	-
4	M0231617		Screw,tf		Appelez-nous	-
4	10781901		Duct, Exhaust		Appelez-nous	-
5	M0590602		Support P-c Bd A		Appelez-nous	-
6	59001497		Hv Board-amana Prog-mc 50 Hz		Appelez-nous	-
7	M0325501		Insulator, Pod K		Appelez-nous	-
8	10172901Q		Snubber Assembly		Appelez-nous	-
9	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
9	D7681501		Triac				$ 44.05
10	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
11	59001128		Bushing, Snap		Appelez-nous	-
12	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
13	59001498		Cord-power		Appelez-nous	-
14	59001500		Relief-strain		Appelez-nous	-
15	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
15	A4055406		Strap, Capacitor		Appelez-nous	-
16	WP59001168		Capacitor-1.00   (Replaces: 12548810)			Immediately	$ 208.35
17	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
17	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
18	A3030301		Gasket (inch)		Appelez-nous	-
19	A3030301		Gasket (inch)		Appelez-nous	-
20	A3030303		Gasket (per Foot)		Appelez-nous	-
21	12136502		Block-3 Pole Fuse		Appelez-nous	-
22	A4539601		Pop Rivet		Appelez-nous	-
23	WPM0805102		Fuse 15 Amp   (Replaces: M0805102)				$ 21.25
24	M0325501		Insulator, Pod K		Appelez-nous	-
