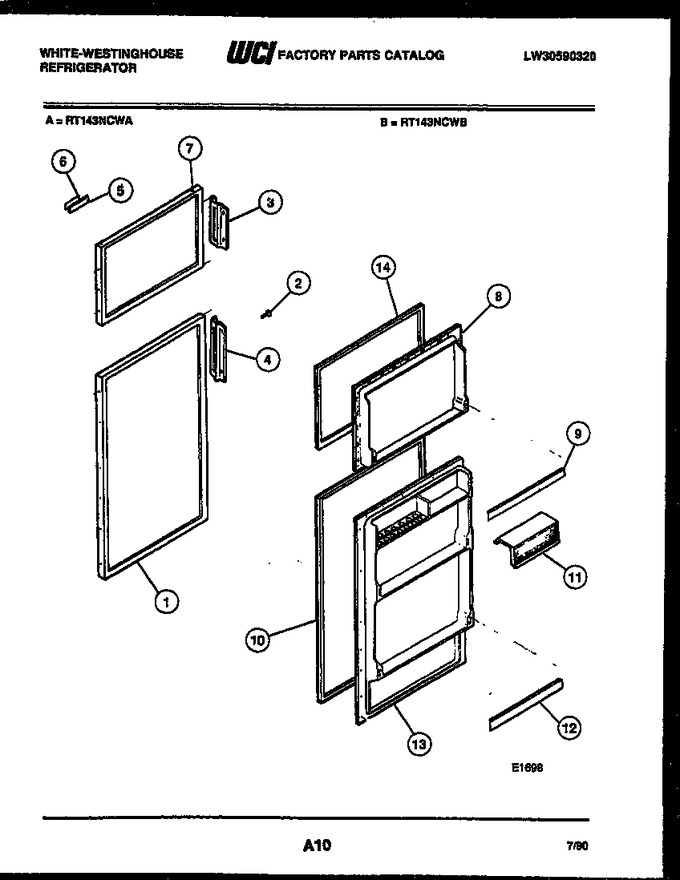

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916814		Panel - Ref - White		Appelez-nous	-
2	5308011745		Screw				$ 10.38
3	3206158		Handle - Freezer Door		Appelez-nous	-
4	3206148		Handle-ref		Appelez-nous	-
5	3206159		Nameplate		Appelez-nous	-
6	G177218-01		Label-nameplate		Appelez-nous	-
7	5303916812		Pnl - Frzr - White		Appelez-nous	-
8	5318023001		Panel - Inner		Appelez-nous	-
9	5303208992		Rack - Freezer Door		Appelez-nous	-
10	5303001398		Gasket - Refrigerator Door		Appelez-nous	-
11	5316177633		Door - Dairy		Appelez-nous	-
12	5303211359		Rack - Refrig (2)		Appelez-nous	-
13	5318022801		Pnl - Inter Door		Appelez-nous	-
14	5303001399		Gasket - Frzr Door		Appelez-nous	-
*34297	G168991-01		Kit - Dr Conv - White		Appelez-nous	-
*34297	G169332-01		Button Plug, White		Appelez-nous	-
*34297	G162977-01		Button Plug-white		Appelez-nous	-
*34299	5303007739		Insulation, Bulk		Appelez-nous	-
13A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
1A	5308012007		Bearing Hng (4)		Appelez-nous	-
7A	5308012007		Bearing Hng (4)		Appelez-nous	-
8A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
