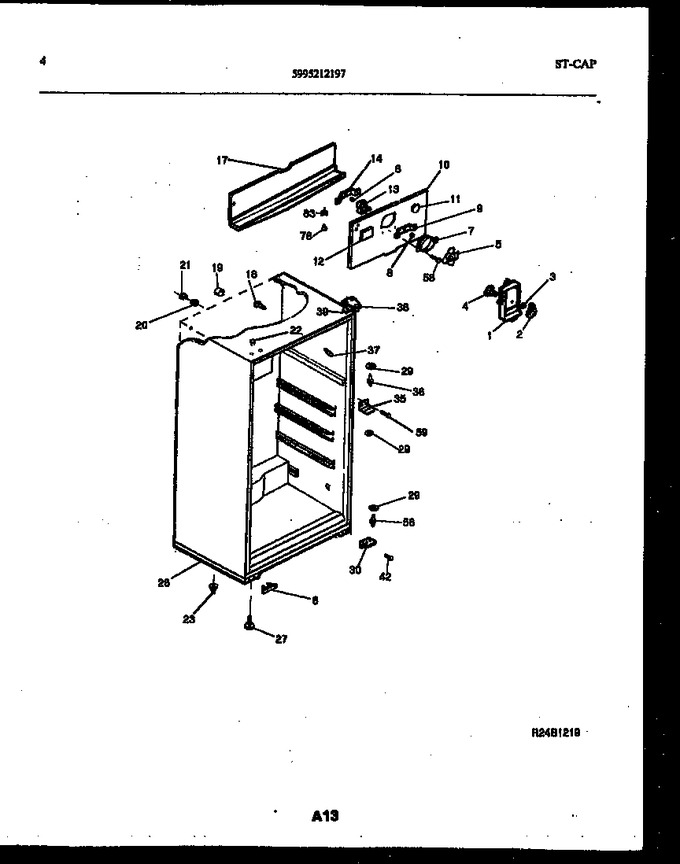

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018426 | Cover-fan (non-illutrated) |
|
- | |||||
| 2 | 5308000081 | Knob - Damper Control |
|
$ 36.02 | |||||
| 3 | 5303001028 | Nut, Push |
|
- | |||||
| 4 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 5 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 6 | 5303001478 | Cover-lwr Hng Holes |
|
- | |||||
| 7 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 10 | 3001358 | Cover - Evap Coil |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 12 | 5308013636 | Plug, Decorative, Ice Maker Hole |
|
- | |||||
| 13 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 14 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 17 | 08003638 | Drain Trough |
|
- | |||||
| 18 | 5308000097 | Support, Evap Cover, (2) |
|
- | |||||
| 19 | 5303001198 | Tube-rubber |
|
- | |||||
| 20 | 5303001286 | Ferrule-inner |
|
- | |||||
| 21 | 5303001287 | Ferrule-outer |
|
- | |||||
| 22 | 5303001389 | Plug-button, Almond, Upr Hinge Holes |
|
- | |||||
| 23 | 5303001386 | Drain Tube |
|
- | |||||
| 26 | 5303006086 | Base-cabinet |
|
- | |||||
| 27 | 5303205540 | Screw-leveling |
|
- | |||||
| 29 | 5303001038 | Washer, .28 X .62 X .19, Nylon |
|
$ 13.34 | |||||
| 29 | 5308000007 | Washer, .34 X .62 X .05, Nylon |
|
- | |||||
| 30 | 5303202834 | Bracket-lower Hinge |
|
$ 89.41 | |||||
| 35 | 5303001369 | Bracket- Center Hinge |
|
- | |||||
| 36 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 37 | 5303202340 | Trim, Cabinet Corner, Almond, (4) |
|
- | |||||
| 38 | 5308012843 | Bracket-upper Hinge |
|
$ 71.47 | |||||
| *54790 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| *54791 | 5308012296 | Tapping Plate, Upper Hinge (2) |
|
$ 47.44 | |||||
| 10A | 5303209814 | Nut, ``u`` Type, No. 8(a), Evap Cover, (2) (non-illustrated) |
|
- | |||||
| 1A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 |
