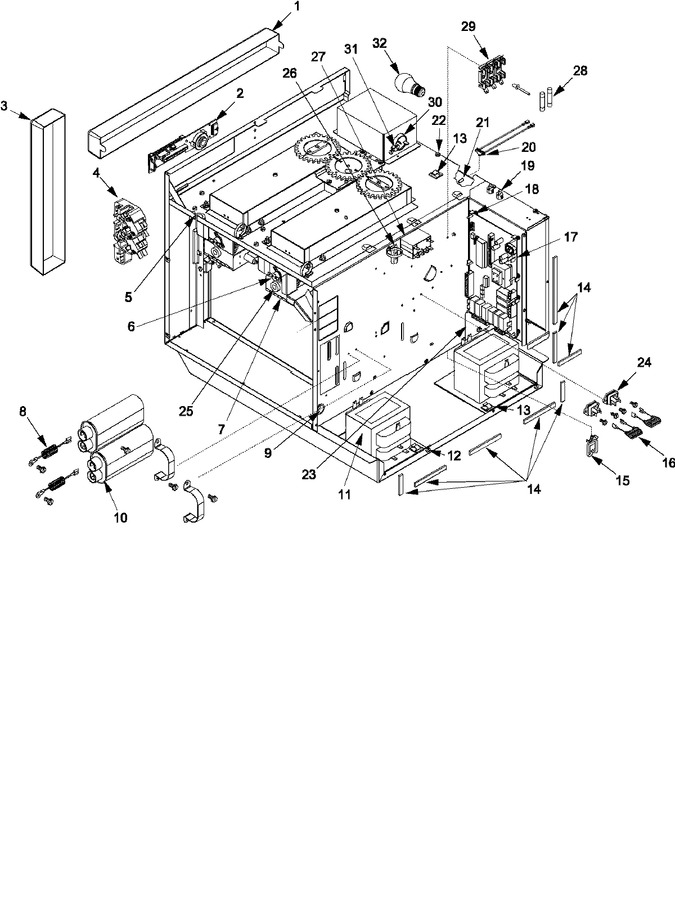

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0231717		Screw, Tf		Appelez-nous	-
1	R0130108		Touch Panel(top)		Appelez-nous	-
2	12502401		Board,display Xxx		Appelez-nous	-
2	M0234114		Screw		Appelez-nous	-
3	M0231717		Screw, Tf		Appelez-nous	-
3	59001616		Touch Panel (side) Ph		Appelez-nous	-
4	59001154		Switch, Interlock		Appelez-nous	-
4	M0216517		Screw		Appelez-nous	-
5	12164101		Grommet-rubber		Appelez-nous	-
6	B5684124		Cutout-thermal Magnetron		Appelez-nous	-
6	M0229916		Screw T.c		Appelez-nous	-
7	59001484		Magnetron-t		Appelez-nous	-
8	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
8	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
9	59001128		Bushing, Snap		Appelez-nous	-
10	WP59001168		Capacitor-1.00   (Replaces: 12548810)			Immediately	$ 208.35
10	A4055406		Strap, Capacitor		Appelez-nous	-
10	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
11	10788609		Transformer-hv 230v 50 Hz		Appelez-nous	-
12	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
13	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
14	A3030301		Gasket (inch)		Appelez-nous	-
15	B5667304		Wire Clip		Appelez-nous	-
16	10172901Q		Snubber Assembly		Appelez-nous	-
17	59001611		Net-board,hv Amana Program		Appelez-nous	-
18	M0590602		Support P-c Bd A		Appelez-nous	-
19	M0325401		Bushing,terminal		Appelez-nous	-
20	B5795306		Thermal Cutout		Appelez-nous	-
20	WP488234		Screw   (Replaces: M0234422)				$ 6.07
21	M0308801		Cap, Protective-threaded (red)		Appelez-nous	-
22	M0231617		Screw,tf		Appelez-nous	-
23	10847601		Plate, Partition		Appelez-nous	-
23	WPW10001160		Screw   (Replaces: M0200316)				$ 8.86
24	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
24	12QBP0508		Kit, Triac Assy   (Replaces: R0157373)				$ 27.14
25	44780P01		Toroid (arc Suppressor)		Appelez-nous	-
26	M0322202		Tie Wire		Appelez-nous	-
27	12492202		Relay		Appelez-nous	-
28	WPM0805102		Fuse 15 Amp   (Replaces: M0805102)				$ 21.25
29	A4539601		Pop Rivet		Appelez-nous	-
29	12136502		Block-3 Pole Fuse		Appelez-nous	-
30	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
30	B8376801		Socket, Light		Appelez-nous	-
31	59001208		Screw, Hex Head		Appelez-nous	-
31	B8376701		Bracket, Light		Appelez-nous	-
32	WP67002552		Bulb, Light (40w-250v)   (Replaces: 67002552)			Immediately	$ 10.58
