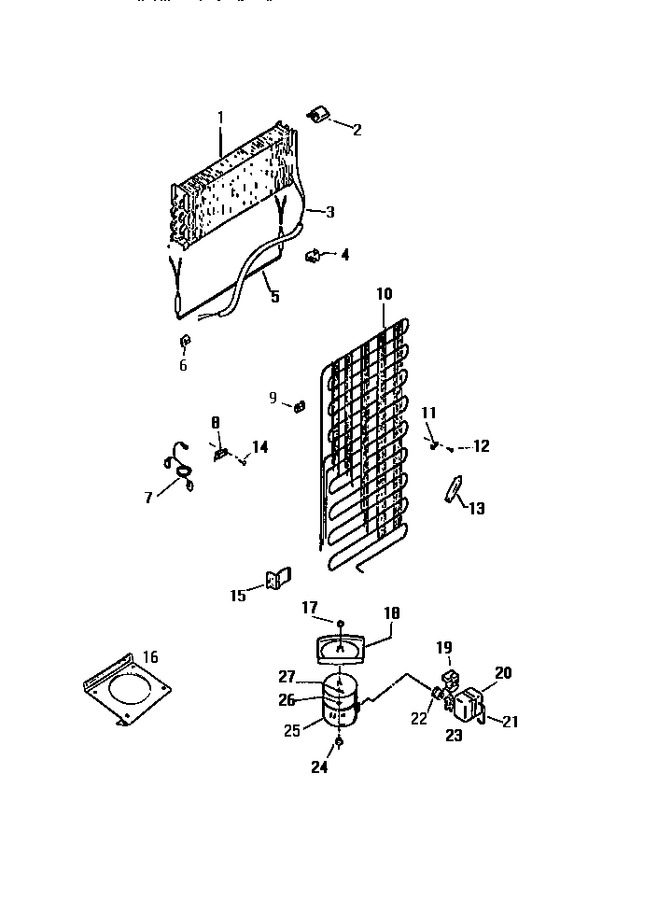

04 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G162736		Evap.		Appelez-nous	-
2	G162690-01		Thermostat		Appelez-nous	-
3	G163389		Heat Exch.		Appelez-nous	-
4	G163215		Block Rh		Appelez-nous	-
5	G162432-02		Heater		Appelez-nous	-
6	G162807		Block Lh		Appelez-nous	-
7	G162549-01		Service Cord		Appelez-nous	-
8	G165184		Clamp		Appelez-nous	-
9	G165129		Spacer		Appelez-nous	-
10	G172511		Condenser		Appelez-nous	-
11	G101747		Clamp		Appelez-nous	-
12	G144049		Screw		Appelez-nous	-
13	C101601		Drier-regular		Appelez-nous	-
14	G171085		Screw		Appelez-nous	-
15	G164637		Bracket		Appelez-nous	-
16	G162822		Plate, Compr., Mtg		Appelez-nous	-
17	G164958		Nut		Appelez-nous	-
18	G171778		Defrost Pan		Appelez-nous	-
19	G182225-12		Relay		Appelez-nous	-
20	G185792		Cover		Appelez-nous	-
21	G185790		Clamp		Appelez-nous	-
22	G185797		Overload		Appelez-nous	-
24	G177617		Grommet		Appelez-nous	-
25	C620102		Compessor W/ Ovld Relay ( Must Use G167234 Kit To Mt Pan		Appelez-nous	-
26	G164634		Washer		Appelez-nous	-
27	G163204		Clip		Appelez-nous	-
13A	R900125		Drier-burnout		Appelez-nous	-
