SELECT A DIAGRAM
02 - Door

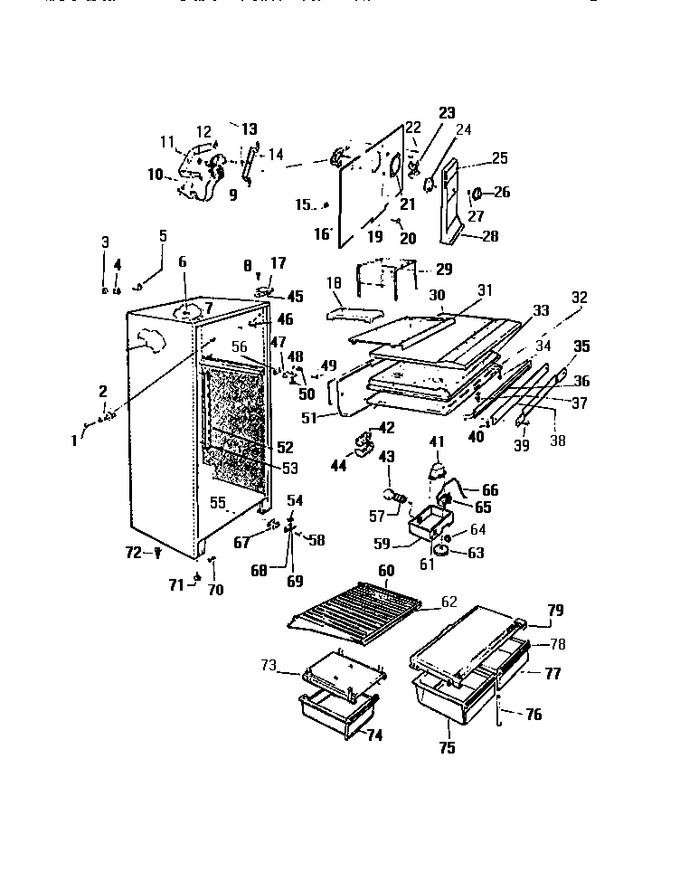

03 - Cabinet, Shelves, Dividler, Fan Ass
04 - Cooling System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G163104 | Screw (4) |
|
- | |||||
| 2 | G163105 | Support, Shelf ( 4 Req ) |
|
- | |||||
| 3 | G174733 | Ferrule, Inner |
|
- | |||||
| 4 | G174734 | Ferrule |
|
- | |||||
| 5 | G58642 | Tube |
|
- | |||||
| 6 | G163669 | Supt Evap Cover (2) |
|
- | |||||
| 7 | G174747-01 | Button-plug-white |
|
- | |||||
| 8 | G167103 | Screw |
|
- | |||||
| 9 | G173301 | Motor |
|
- | |||||
| 10 | G164571 | Bracket |
|
- | |||||
| 11 | G162048 | Bracket |
|
- | |||||
| 12 | G157666 | Grommet |
|
- | |||||
| 13 | G157666 | Grommet |
|
- | |||||
| 14 | G162049 | Bracket |
|
- | |||||
| 15 | G167542 | Clip |
|
- | |||||
| 16 | G163290 | Cover |
|
- | |||||
| 17 | G162385 | Hinge, Rt Sd/ L.sd |
|
- | |||||
| 18 | R2901 | Ice Tray |
|
- | |||||
| 19 | G162701 | Speed Nut |
|
- | |||||
| 20 | Q301267 | Screw |
|
- | |||||
| 21 | G167217 | Ring |
|
- | |||||
| 22 | Q401601 | Screw |
|
- | |||||
| 23 | G126599 | Blade |
|
- | |||||
| 24 | G162661 | Damper (air Flow) |
|
- | |||||
| 25 | G180184 | Label |
|
- | |||||
| 26 | G162663-13 | Knob |
|
- | |||||
| 27 | G162662 | Clip |
|
- | |||||
| 28 | G490076-02 | Cover |
|
- | |||||
| 29 | G162844 | Rack If Req |
|
- | |||||
| 30 | G162857 | Bottom ( Freezer ) |
|
- | |||||
| 31 | G177415-01 | Shelf |
|
- | |||||
| 32 | G174713 | Top ( Ref. Sect. ) |
|
- | |||||
| 33 | G163219 | Divider |
|
- | |||||
| 34 | G162673 | Screw |
|
- | |||||
| 35 | G166709 | Strap |
|
- | |||||
| 36 | G177255 | Heater |
|
- | |||||
| 37 | G162672 | Switch |
|
- | |||||
| 38 | G174520-09 | Mullion, Wheat |
|
- | |||||
| 39 | 1213298 | Screw |
|
- | |||||
| 40 | G166848 | Spacer |
|
- | |||||
| 41 | G172706 | Timer |
|
- | |||||
| 42 | G162178 | Cover |
|
- | |||||
| 43 | Q63749 | Bulb |
|
- | |||||
| 44 | G162675 | Deflector |
|
- | |||||
| 45 | G158344 | Shim |
|
- | |||||
| 46 | G162364-01 | Trim (4) |
|
- | |||||
| 47 | G163207 | Hinge Rt Or L.sd |
|
- | |||||
| 48 | G142220 | Pin |
|
- | |||||
| 49 | G167777 | Screw |
|
- | |||||
| 50 | G164355 | Bearing |
|
- | |||||
| 51 | G163292 | Trough |
|
- | |||||
| 52 | G170695 | Stringer |
|
- | |||||
| 53 | G166567 | Screw |
|
- | |||||
| 54 | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 55 | G179797 | Tap Plate |
|
- | |||||
| 56 | G162683 | Shim |
|
- | |||||
| 57 | G168302 | Socket |
|
- | |||||
| 58 | G167103 | Screw |
|
- | |||||
| 59 | G176722-01 | Cover |
|
- | |||||
| 60 | G180195-01 | Shelf (3) |
|
- | |||||
| 61 | G180197 | Label |
|
- | |||||
| 62 | G177060-04 | Trim ( Cut To Size ) |
|
- | |||||
| 63 | G490107-02 | Knob |
|
- | |||||
| 64 | G177727-02 | Switch |
|
- | |||||
| 65 | G162667-05 | Control |
|
- | |||||
| 66 | G142176-41 | Sleeve |
|
- | |||||
| 67 | G162903 | Shim |
|
- | |||||
| 68 | G166505 | Pin |
|
- | |||||
| 69 | G181019 | Hinge |
|
- | |||||
| 70 | G166912 | Plug |
|
- | |||||
| 71 | G166739 | Screw, Leveling |
|
- | |||||
| 72 | G163205 | Tube |
|
- | |||||
| 73 | G177471-02 | Cover |
|
- | |||||
| 74 | G177470-01 | Tray, Meat |
|
- | |||||
| 75 | G177255-01 | Pan, Crisper |
|
- | |||||
| 76 | G166310-02 | Support |
|
- | |||||
| 77 | G177253-01 | Pan, Crisper |
|
- | |||||
| 78 | G177343-03 | Trim, Pans |
|
- | |||||
| 79 | G162957-02 | Cover |
|
- | |||||
| *90963 | G174747-09 | Plug-button, Wheat |
|
- | |||||
| *90967 | G162364-09 | Trim, Wheat |
|
- | |||||
| 31A | G177060-04 | Trim |
|
- | |||||
| 40A | G166817 | Washer |
|
- | |||||
| 71A | G164702 | Nut ( Plastic ) |
|
- |
