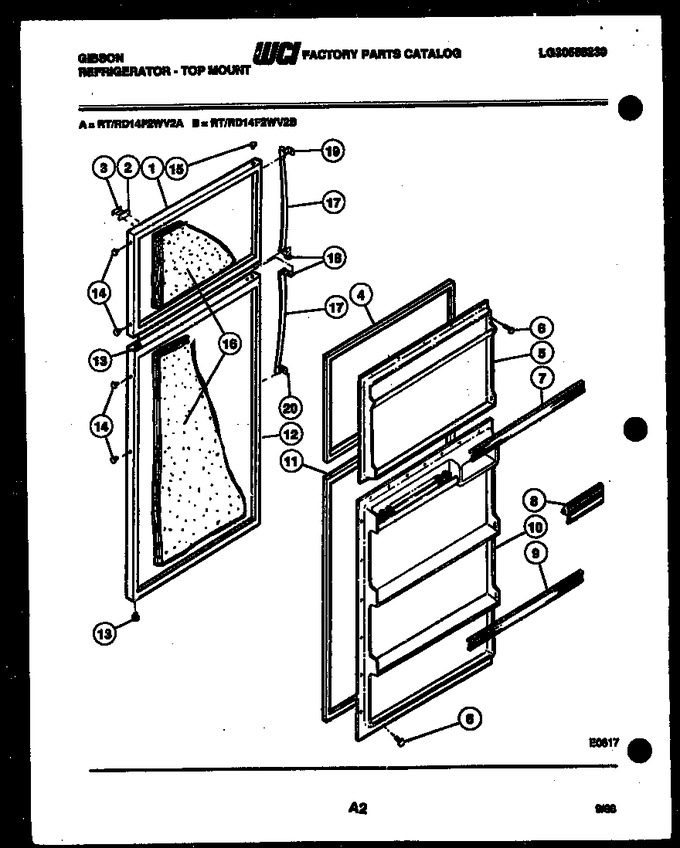

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G171427 | Freezer Door-white |
|
- | |||||
| 1 | G171427-09 | Freezer Door-wheat |
|
- | |||||
| 1 | G171427-08 | Freezer Door-avocado |
|
- | |||||
| 1 | G171427-10 | Freezer Door-coffee |
|
- | |||||
| 1 | G171427-11 | Freezer Door-almond |
|
- | |||||
| 2 | G175117-10 | Frame-namplate |
|
- | |||||
| 3 | G188378-02 | Label Nameplate |
|
- | |||||
| 4 | G186932-03 | Gasket-freezer |
|
- | |||||
| 5 | G165195-03 | Inner Panel-freezer |
|
- | |||||
| 6 | G162585 | Screw |
|
- | |||||
| 7 | G164698-28 | Door Rack-freezer |
|
- | |||||
| 8 | G163222-35 | Dairy Door |
|
- | |||||
| 9 | G164698-27 | Door Rack-refrigerator |
|
- | |||||
| 10 | G165190-03 | Inner Panel-refrigerator |
|
- | |||||
| 11 | G186932-02 | Gasket-refrigerator |
|
- | |||||
| 12 | G171426-08 | Refrigerator Door-avocado |
|
- | |||||
| 12 | G171426-11 | Refrigerator Door-almond |
|
- | |||||
| 12 | G171426 | Refrigerator Door-white |
|
- | |||||
| 12 | G171426-09 | Refrigerator Door-wheat |
|
- | |||||
| 12 | G171426-10 | Refrigerator Door-coffee |
|
- | |||||
| 13 | G183138 | Bearing Hinge (8) |
|
- | |||||
| 14 | G162977-11 | Button Plug-almond |
|
- | |||||
| 14 | G162977-09 | Button Plug-wheat |
|
- | |||||
| 14 | G162977-08 | Button Plug-avocado |
|
- | |||||
| 14 | G162977-01 | Button Plug-white |
|
- | |||||
| 14 | G162977-10 | Button Plug-coffee |
|
- | |||||
| 15 | G169332-09 | Button Plug, Wheat |
|
- | |||||
| 15 | G169332-01 | Button Plug, White |
|
- | |||||
| 15 | G169332-11 | Button Plug, Almond |
|
- | |||||
| 15 | G169332-10 | Button-plug, Coffee |
|
- | |||||
| 15 | G169332-08 | Button Plug-avocado |
|
- | |||||
| 16 | G89643 | Insulation (bulk) |
|
- | |||||
| 17 | G170495-24 | Grip-handle (2) |
|
- | |||||
| 18 | G187329-01 | Handle End (2) |
|
- | |||||
| 19 | G179800 | Handle End-top |
|
- | |||||
| 20 | G179801 | Handle End-bottom |
|
- | |||||
| *84307 | G185566 | Screw |
|
- | |||||
| 2A | G153407-12 | Tape-frame Mounting (non-illustrated) |
|
- |
