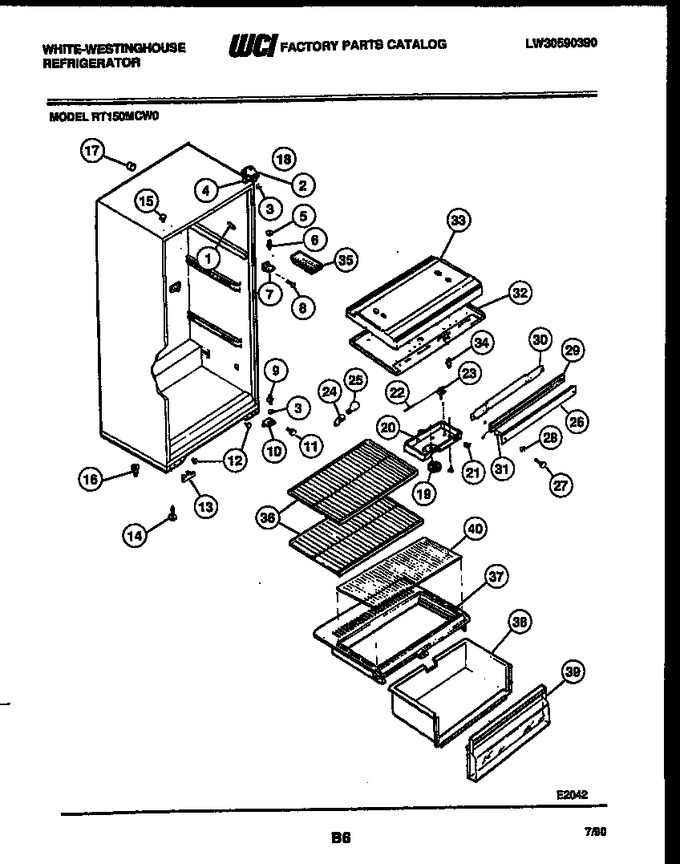

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303202339 | Corner Trim - Coffee |
|
- | |||||
| 1 | 5303202337 | Corner Trim - Avocado |
|
- | |||||
| 1 | 5303202338 | Corner Trim, Wheat |
|
- | |||||
| 1 | 5303202340 | Corner Trim-almond |
|
- | |||||
| 1 | 5303202336 | Corner-trim (white) |
|
- | |||||
| 2 | 3206100 | Hinge, Top |
|
- | |||||
| 3 | 5308000007 | Washer-hinge (2) |
|
- | |||||
| 4 | 5303001037 | Shim, Top Hinge |
|
$ 12.39 | |||||
| 5 | 5308000186 | Washer - Center Hinge |
|
Immediately | $ 6.02 | ||||
| 6 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 7 | 5303001369 | Bracket- Center Hinge |
|
- | |||||
| 8 | 3206134 | Screw Hinge Mtg (2) |
|
- | |||||
| 9 | 5303001321 | Pin, Bottom Hinge |
|
$ 17.25 | |||||
| 10 | 3206136 | Bracket-bottom Hinge |
|
- | |||||
| 11 | 3206143 | Screw-hinge Mtg |
|
- | |||||
| 12 | 3206142 | Plug (2) |
|
- | |||||
| 13 | 3206135 | Cover-hinge Screw |
|
- | |||||
| 14 | 3206141 | Leveling Leg Screw (2) |
|
$ 11.50 | |||||
| 15 | 5303001678 | Plug - Hinge - Wheat |
|
- | |||||
| 15 | 5303001389 | Plug - Hinge - Almond |
|
- | |||||
| 15 | 5303001679 | Plug - Hinge - Coffee |
|
- | |||||
| 15 | 5303001388 | Plug - Hinge - White |
|
$ 2.60 | |||||
| 15 | 5303001677 | Plug-hinge Avocado |
|
- | |||||
| 16 | 5303211514 | Drain Tube |
|
- | |||||
| 17 | 5303001198 | Tube-rubber |
|
- | |||||
| 18 | 3206105 | Cover-top Hinge-almond |
|
$ 60.90 | |||||
| 18 | 3206104 | Cover-top Hinge-coffee |
|
- | |||||
| 18 | 3206101 | Cover-top Hinge-white |
|
$ 49.25 | |||||
| 18 | 3206102 | Cover - Top Hinge - Avocado |
|
- | |||||
| 18 | 3206103 | Cover-top Hinge-wheat |
|
- | |||||
| 19 | 5303201777 | Knob - Temp. Control |
|
- | |||||
| 20 | 5303211508 | Control Box |
|
- | |||||
| 21 | 3206129 | Switch-energy Saver |
|
- | |||||
| 22 | 08010035 | Tube - Plastic |
|
- | |||||
| 23 | 5303211506 | Control-temp |
|
- | |||||
| 24 | 218906802 | Light Socket (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 25 | 5303001179 | Light Bulb |
|
- | |||||
| 26 | 3206124 | Mullion-coffee |
|
- | |||||
| 26 | 3206123 | Mullion-wheat |
|
- | |||||
| 26 | 3206122 | Mullion-avocado |
|
- | |||||
| 26 | 3206121 | Mullion, White |
|
- | |||||
| 26 | 3206125 | Mullion, Almond |
|
- | |||||
| 27 | 3206134 | Screw-mullion (4) |
|
- | |||||
| 28 | 5308003607 | Washer, No. 10 Steel (2) |
|
$ 1.00 | |||||
| 29 | 3206120 | Heater-mullion |
|
- | |||||
| 30 | 5303207247 | Strap-mullion Mtg |
|
- | |||||
| 31 | 5303206753 | Spacer-mullion Mtg, (2) |
|
- | |||||
| 32 | 5303211503 | Top Refrigerator |
|
- | |||||
| 33 | 5303211502 | Divider-styrofoam |
|
- | |||||
| 34 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 35 | 5303001324 | Ice Tray (2) |
|
- | |||||
| 36 | 3206099 | Shelf-sliding (2) |
|
- | |||||
| 37 | 3206112 | Cover-crisper-less Insert |
|
- | |||||
| 38 | 3206107 | Pan-crisper |
|
- | |||||
| 39 | 3206106 | Front-crisper Pan |
|
- | |||||
| 40 | 3206111 | Insert-crisper Cover |
|
- | |||||
| 18A | 5308012296 | Tapping Plate (2) (non-illustrated) |
|
$ 47.44 | |||||
| 20A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 23A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 2A | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 32A | 5303001380 | Screw |
|
- | |||||
| 33A | 5303211512 | Wiring Harness - Divider |
|
- |
