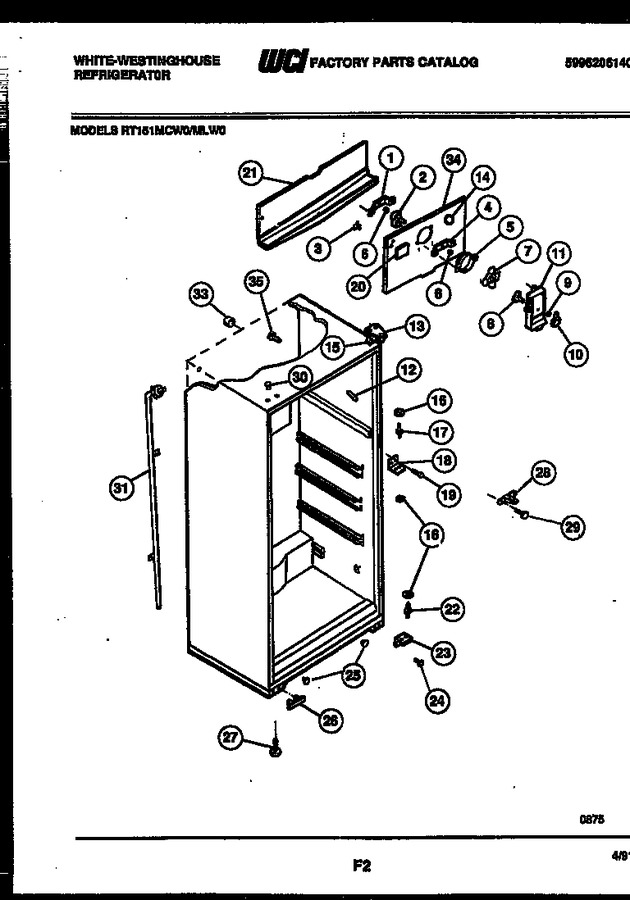

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303205119 | Bracket, Rear |
|
- | |||||
| 2 | 5300158289 | Fan Motor |
|
Immediately | $ 149.94 | ||||
| 3 | 5308000107 | Connector Bracket |
|
$ 33.23 | |||||
| 4 | 5303205118 | Bracket - Front |
|
- | |||||
| 5 | 5308000124 | Orifice Ring |
|
$ 53.58 | |||||
| 6 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 7 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 8 | 3206110 | Damper |
|
$ 53.08 | |||||
| 9 | 5303001028 | Push Nut - Damper |
|
- | |||||
| 10 | 5308000081 | Knob - Damper Control |
|
$ 36.02 | |||||
| 11 | 3206108 | Fan Cover |
|
- | |||||
| 12 | 5303202336 | Corner-trim (white) |
|
- | |||||
| 13 | 3206100 | Bracket-hinge Upper |
|
- | |||||
| 14 | 5303208309 | Plug, Short Test Hole |
|
$ 45.50 | |||||
| 15 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 16 | 5308000186 | Washer-hinge (3) |
|
Immediately | $ 6.02 | ||||
| 17 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 18 | 5303001369 | Bracket-hinge-center |
|
- | |||||
| 19 | 3206134 | Screw-hinge Center (2) |
|
- | |||||
| 20 | 5308013636 | Plug, Decorative |
|
- | |||||
| 21 | 3206146 | Drain Trough |
|
- | |||||
| 22 | 5303001321 | Pin-hinge Bottom |
|
$ 17.25 | |||||
| 23 | 3206136 | Bracket-hinge Bottom |
|
- | |||||
| 24 | 3206143 | Screw-hinge Bottom (2) |
|
- | |||||
| 25 | 3206142 | Plug (2) |
|
- | |||||
| 26 | 3206135 | Cover-hinge Screw |
|
- | |||||
| 27 | 3206141 | Leveling Screw (2) |
|
$ 11.50 | |||||
| 28 | 5308000056 | Spout-drain Tube |
|
$ 11.66 | |||||
| 29 | 5303001361 | Pin-push |
|
- | |||||
| 30 | 5303001388 | Plug-hinge (2)-white |
|
$ 2.60 | |||||
| 31 | 5303269702 | Tube-defrost W/ Ring Seal |
|
$ 104.63 | |||||
| 33 | 5303001198 | Tube-rubber |
|
- | |||||
| 34 | 3206119 | Cover-coil |
|
- | |||||
| 35 | 5308000097 | Support, Coil Cover (2) |
|
- | |||||
| *43841 | 5308016571 | Plug-liner (6) |
|
$ 4.79 | |||||
| *43842 | 5308012296 | Tapping-plate (2) |
|
$ 47.44 | |||||
| 13A | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 34A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 34B | 5303209814 | Nut U, Type (2) (non-illustrated) |
|
- | |||||
| 3A | 5303210353 | Screw-connector Bracket (non-illustrated) |
|
- | |||||
| 5A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 |
