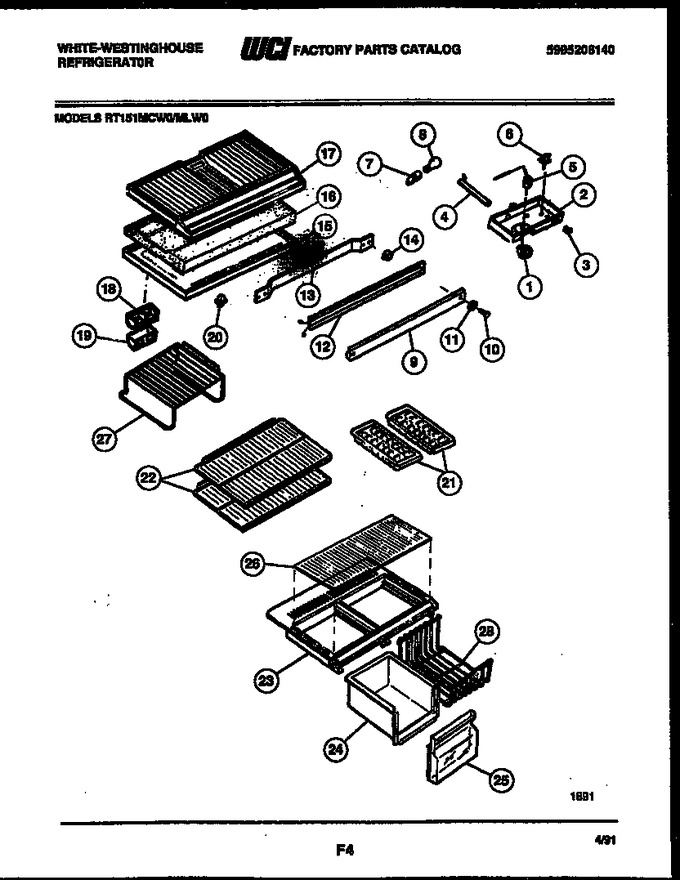

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303209251		Knob-temp Control		Appelez-nous	-
2	5303207248		Control Box		Appelez-nous	-
3	5303207249		Switch-energy Saver		Appelez-nous	-
4	3018891		Housing, Cap Tube		Appelez-nous	-
5	5303018894		Control-temperature		Appelez-nous	-
6	215846602		Timer-defrost   (Replaces: 5300187484)			Immediately	$ 28.20
7	218906802		Light Socket   (Replaces: 5308000815)				$ 17.72
8	5303001179		Light Bulb		Appelez-nous	-
9	3206121		Mullion, White		Appelez-nous	-
10	3206134		Screw - Mullion (2)		Appelez-nous	-
11	5308003607		Washer Mullion (2)				$ 1.00
12	3206120		Heater-mullion		Appelez-nous	-
13	5308003604		Strap Mullion		Appelez-nous	-
14	5303200464		Spacer, Mullion (2)		Appelez-nous	-
15	3206128		Top Panel-refrig		Appelez-nous	-
16	3206131		Divider		Appelez-nous	-
17	3206132		Bottom-freezer		Appelez-nous	-
18	5308014667		Air Deflector		Appelez-nous	-
19	5303001448		Cover-deflector		Appelez-nous	-
20	5309918806		Light Switch			Immediately	$ 21.97
21	5303001324		Ice Tray (2)		Appelez-nous	-
22	5303208220		Shelf-sliding (2)		Appelez-nous	-
23	3206112		Cover-crisper-less Insert		Appelez-nous	-
24	3206212		Pan-crisper		Appelez-nous	-
25	5303208183		Front - Crisper Pan		Appelez-nous	-
26	3206111		Insert-crisper Cover		Appelez-nous	-
27	5303272809		Shelf-freezer		Appelez-nous	-
28	5303208189		Trivet		Appelez-nous	-
15A	5303001380		Screw		Appelez-nous	-
17A	3205266		Protector-edge (2) (non-illustrated)				$ 80.09
18A	5303200590		Extension & Insulation Air Deflector (non-illustrated)		Appelez-nous	-
2A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
5A	5303001260		Screw				$ 6.73
6A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
