Diagram # Part Number Description Series Availability Ships Price Add to Cart
110 R0178783 Lower Trim Splashplate Appelez-nous -
111 R0178785 Wire Cover Appelez-nous -
112 R0183038 Trim, Glass Appelez-nous -
113 R0183039 Glass, Splashplate Appelez-nous -
114 R0178787 Trim-rear Appelez-nous -
115 R0178788 Decorative Trim Appelez-nous -
116 R0178789 Support Channel, R.h. Appelez-nous -
117 R0178790 Support Channel, L.h. Appelez-nous -
118 R0178791 Brace, Upper Oven Appelez-nous -
119 R0178792 Panel, Surface Light Appelez-nous -
120 R0178793 Trim Support Appelez-nous -
121 R0178794 Trim Support Appelez-nous -
122 R0178795 Jacket-bottom Appelez-nous -
123 R0178796 Trim, Strip, R.h. Appelez-nous -
124 R0178797 Trim Strip, L.h. Side Appelez-nous -
125 R0179024 Shelf-upper Oven Appelez-nous -
126 R0191047 Mounting Strap Appelez-nous -
127 R0178798 End Panel-rh-w Appelez-nous -
127 R0178799 End Panel-rh-c Appelez-nous -
127 R0178801 End Panel-rh-a Appelez-nous -
127 R0178802 End Panel-rh-g Appelez-nous -
128 R0178803 End Panel-lh-w Appelez-nous -
128 R0178804 End Panel-lh-c Appelez-nous -
128 R0178805 End Panel-lh-a Appelez-nous -
128 R0178806 End Panel-lh-g Appelez-nous -
129 R0191048 Mtg Bracket Appelez-nous -
130 R0195005 Tape, Air Seal, 4 Ft. Length Appelez-nous -
131 R0195005 Tape, Air Seal, 4 Ft. Length Appelez-nous -
132 R0178819 Plate-air Seal Appelez-nous -
133 R0178820 Backplate Appelez-nous -
134 R0178821 Top-jacket Appelez-nous -
135 R0178822 Receptacle Cover Appelez-nous -
136 R0178823 Insert, Top Trim Appelez-nous -
137 R0178824 Top Trim, Air Intake Appelez-nous -
138 R0178825 Oven Top Appelez-nous -
139 R0191049 Bracket-oven Lamp Appelez-nous -
140 R0178826 Guide-oven Light Appelez-nous -
141 R0178827 Baffle-oven Top Appelez-nous -
142 R0195005 Tape, Air Seal, 4 Ft. Length Appelez-nous -
143 R0178828 Side Shield, Oven Light Appelez-nous -
144 R0178808 Trim, Front, R.h. Appelez-nous -
145 R0178809 Front Trim-lh Appelez-nous -
146 R0178810 Side Shield Appelez-nous -
147 R0178811 End Panel-rh-w Appelez-nous -
147 R0178812 End Panel-rh-c Appelez-nous -
147 R0178813 End Panel-rh-a Appelez-nous -
147 R0178814 End Panel-rh-g Appelez-nous -
148 R0178815 End Panel-lh-w Appelez-nous -
148 R0178816 End Panel-lh-c Appelez-nous -
148 R0178817 End Panel-lh-a Appelez-nous -
148 R0178818 End Panel-lh-g Appelez-nous -
149 R0178807 Baffle-oven Vent Appelez-nous -
150 R0183040 Oven Tray Kit Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

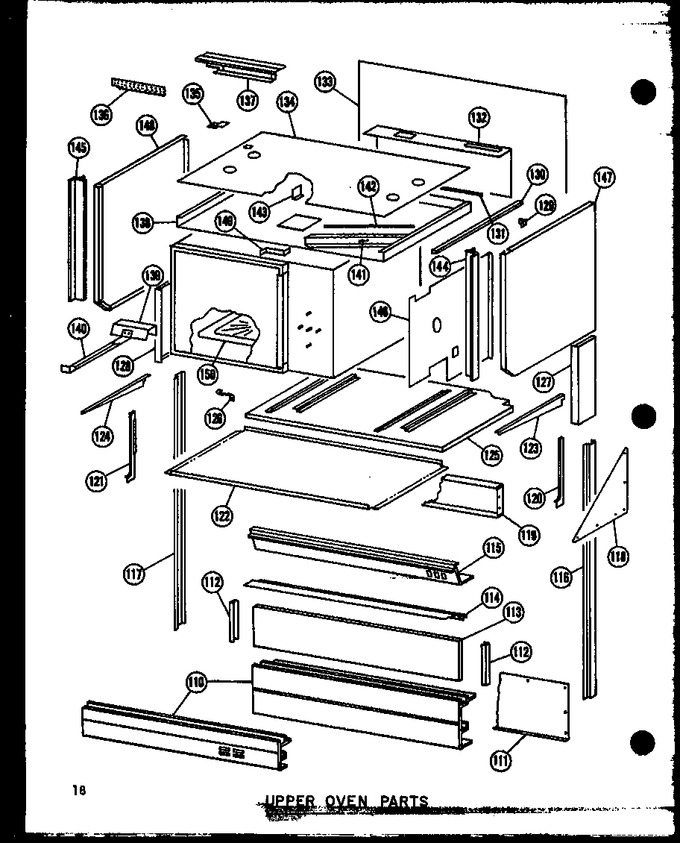

Diagram for RCC-3-C (BOM: P7277101M C)
